HOT-613 (DUAL) Motherboard Settings and Configuration

SHUTTLE COMPUTER INTERNATIONAL, INC.

HOT-613 (DUAL)

Processor
Pentium Pro
Processor Speed
180/200MHz
Chip Set
Intel
Video Chip Set
None
Maximum Onboard Memory
512MB (EDO supported)
Maximum Video Memory
None
Cache
256/512KB (located on Pentium Pro CPU)
BIOS
Award
Dimensions
305mm x 240mm
I/O Options
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, VRM connector
NPU Options
None

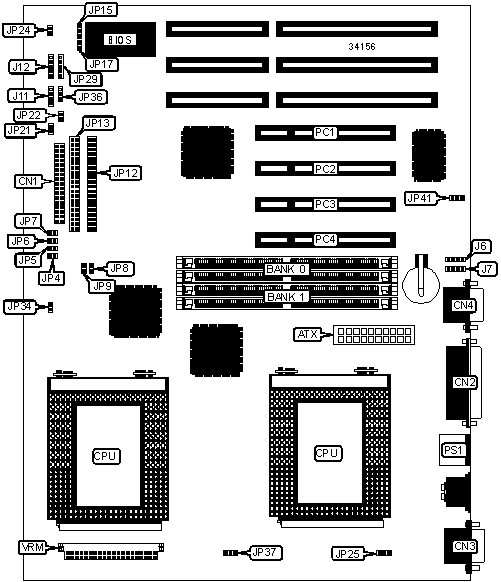

CONNECTIONS
Purpose
Location
Purpose
Location
ATX power connector
ATX
IDE interface LED
JP21
Floppy drive interface
CN1
Green PC connector
JP22
Parallel port
CN2
Reset switch
JP24
Serial port
CN3
Chassis fan power
JP25
Serial port
CN4
IR connector
JP29
USB connector
J6
Remote power on connector
JP34
USB connector
J7
Green PC LED
JP36
Speaker
J11
Chassis fan power
JP37
Power LED & keylock
J12
32-bit PCI slots
PC1 – PC4
IDE interface 1
JP12
PS/2 mouse port
PS1
IDE interface 2
JP13
VRM connector
VRM

USER CONFIGURABLE SETTINGS
Function
Label
Position

Flash BIOS voltage select 12v
JP15
Pins 1 & 2 closed

Flash BIOS voltage select 5v
JP15
Pins 2 & 3 closed
»
Factory configured - do not alter
JP17
Unidentified
»
CMOS memory normal operation
JP41
Pins 2 & 3 closed

CMOS memory clear
JP41
Pins 1 & 2 closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 36
None
16MB
(2) 2M x 36
None
16MB
(2) 1M x 36
(2) 1M x 36
24MB
(2) 2M x 36
(2) 1M x 36
32MB
(2) 4M x 36
None
32MB
(2) 2M x 36
(2) 2M x 36
40MB
(2) 4M x 36
(2) 1M x 36
48MB
(2) 4M x 36
(2) 2M x 36
64MB
(2) 8M x 36
None
64MB
(2) 4M x 36
(2) 4M x 36
80MB
(2) 8M x 36
(2) 2M x 36
96MB
(2) 8M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 8M x 36
128MB
(2) 16M x 36
None
160MB
(2) 16M x 36
(2) 4M x 36
192MB
(2) 16M x 36
(2) 8M x 36

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
256MB
(2) 16M x 36
(2) 16M x 36
256MB
(2) 32M x 36
None
320MB
(2) 32M x 36
(2) 8M x 36
384MB
(2) 32M x 36
(2) 16M x 36
512MB
(2) 32M x 36
(2) 32M x 36
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs.

CACHE CONFIGURATION
Note: 256KB/512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION
CPU speed
Clock speed
Multiplier
JP4
JP5
JP6
JP7
JP8
JP9
180MHz
60MHz
3x
Closed
Open
Closed
Closed
1 & 2
1 & 2
200MHz
66MHz
3x
Closed
Open
Closed
Closed
2 & 3
2 & 3
Note: Pins designated should be in the closed position.
