HOT-617 Motherboard Settings and Configuration
SHUTTLE COMPUTER INTERNATIONAL, INC.
HOT-617
Processor | Pentium Pro |
Processor Speed | 180/200MHz |
Chip Set | Intel |
Video Chip Set | None |
Maximum Onboard Memory | 512MB (EDO supported) |
Maximum Video Memory | None |
Cache | 256/512KB (located on Pentium Pro CPU) |
BIOS | Award |
Dimensions | 280mm x 220mm |
I/O Options | 32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, serial ports (2), IR connector, USB connectors (2) |
NPU Options | None |

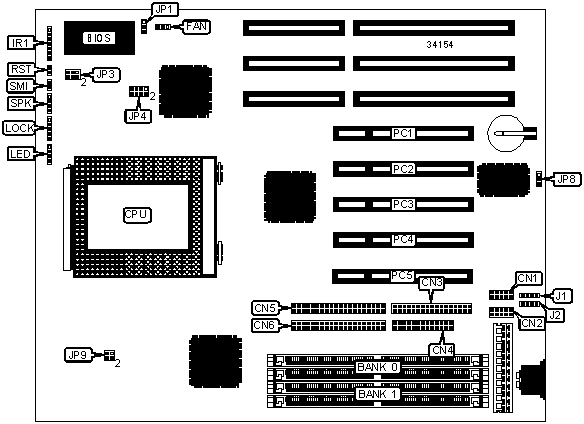

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Serial port 2 | CN1 | USB connector | J1 |
Serial port 1 | CN2 | USB connector | J2 |
Floppy drive interface | CN3 | IDE interface LED | LED |
Parallel port | CN4 | Power LED & keylock | LOCK |
IDE interface 2 | CN5 | Reset switch | RST |
IDE interface 1 | CN6 | 32-bit PCI slots | PC1 – PC5 |
Chassis fan power | FAN | Green PC connector | SMI |
IR connector | IR1 | Speaker | SPK |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
Flash BIOS voltage select 12v | JP1 | Pins 1 & 2 closed | |
Flash BIOS voltage select 5v | JP1 | Pins 2 & 3 closed | |
» | CMOS memory normal operation | JP8 | Pins 1 & 2 closed |
CMOS memory clear | JP8 | Pins 2 & 3 closed | |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
8MB | (2) 1M x 36 | None |
16MB | (2) 2M x 36 | None |
16MB | (2) 1M x 36 | (2) 1M x 36 |
24MB | (2) 2M x 36 | (2) 1M x 36 |
32MB | (2) 4M x 36 | None |
32MB | (2) 2M x 36 | (2) 2M x 36 |
40MB | (2) 4M x 36 | (2) 1M x 36 |
48MB | (2) 4M x 36 | (2) 2M x 36 |
64MB | (2) 8M x 36 | None |
64MB | (2) 4M x 36 | (2) 4M x 36 |
80MB | (2) 8M x 36 | (2) 2M x 36 |
96MB | (2) 8M x 36 | (2) 4M x 36 |
128MB | (2) 8M x 36 | (2) 8M x 36 |
128MB | (2) 16M x 36 | None |
160MB | (2) 16M x 36 | (2) 4M x 36 |
192MB | (2) 16M x 36 | (2) 8M x 36 |
256MB | (2) 16M x 36 | (2) 16M x 36 |
256MB | (2) 32M x 36 | None |
320MB | (2) 32M x 36 | (2) 8M x 36 |
384MB | (2) 32M x 36 | (2) 16M x 36 |
512MB | (2) 32M x 36 | (2) 32M x 36 |
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. | ||
CACHE CONFIGURATION |
Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
CPU SPEED SELECTION | ||||
CPU speed | Clock speed | Multiplier | JP3 | JP4 |
180MHz | 60MHz | 3x | 3 & 4 | 1 & 2, 5 & 6, 7 & 8 |
200MHz | 66MHz | 3x | 1 & 2 | 1 & 2, 5 & 6, 7 & 8 |
Note: Pins designated should be in the closed position. | ||||
CPU VOLTAGE SELECTION | ||
Voltage | JP9 | |
3.1 | Pins 1 & 2, 3 & 4 closed | |
3.2 | Pins 1 & 2 closed | |
| » | 3.3 | Pins 1 & 3, 2 & 4 closed |
3.4 | Pins 1 & 3 closed | |
3.5 | Pins 3 & 4 closed | |
3.6 | Open | |
