DTC ULTIMA (400576-89A) Hard Disk/Floppy Controller Settings and Configuration

Card Type	Hard drive controller card
Hard drives supported	Two EIDE(AT) interface drives
Floppy drives supported	None
Data-bus	32-bit VESA Local Bus
Size	Full-length, half-height card

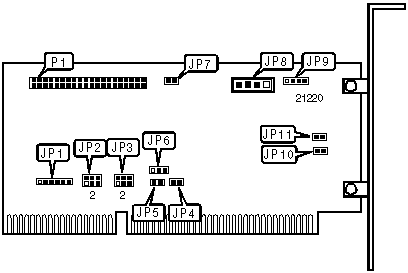

CONNECTIONS
Function	Label	Function	Label
4-pin connector - drive active LED	JP7	Audio-in - CD-ROM	JP9
Audio-in - CD-ROM (Mitsumi)	JP8	40-pin EIDE(AT) interface connector	P1

USER CONFIGURABLE CONNECTIONS
Function		Location	Setting
»	BIOS enabled	JP4	Closed
	BIOS disabled	JP4	Open
»	IOCHRDY signal enabled	JP5	Closed
	IOCHRDY signal disabled	JP5	Open
»	EIDE(AT) interface enabled	JP6	Pins 1 & 2 closed
	EIDE(AT) interface disabled	JP6	Pins 2 & 3 closed

IDE INTERRUPT SELECTION
IRQ		JP1
	IRQ11	Pins 5 & 6 closed
	IRQ12	Pins 4 & 5 closed
»	IRQ14	Pins 1 & 2 closed
	IRQ15	Pins 2 & 3 closed

IDE I/O ADDRESS SELECTION
Address		JP2
	168-16Fh	Pins 1 & 2, 4 & 5 closed
	170-177h	Pins 1 & 2, 5 & 6 closed
	1E8-1EFh	Pins 2 & 3, 4 & 5 closed
»	1F0-1F7h	Pins 2 & 3, 5 & 6 closed

BIOS ADDRESS SELECTION
Address		JP3
	C8000-CBFFFh	Pins 1 & 2, 4 & 5 closed
	CC000-DBFFFh	Pins 2 & 3, 4 & 5 closed
	D8000-DFFFFh	Pins 1 & 2, 5 & 6 closed
»	DC000-DFFFFh	Pins 2 & 3, 5 & 6 closed
