DTC2183H (400586-89A) Hard Disk/Floppy Controller Settings and Configuration

DATA TECHNOLOGY CORPORATION

DTC2183H (400586-89A)

Card Type
Hard drive controller card
Hard Drives supported
Two EIDE drives
Floppy drives supported
None
Data Bus
16-bit-ISA
Card Size
Half-length, half-height card

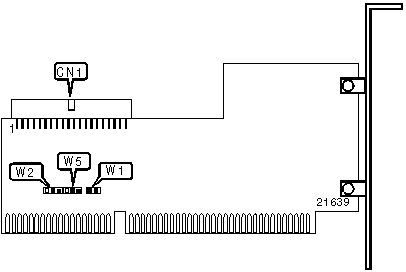

CONNECTIONS
Function
Location
40-pin primary IDE(AT) connector
CN1

IDE INTERRUPT SELECTION
IRQ
W1
W2
W5
»
IRQ 15
Closed
Pins 2 & 3 closed
Open

IRQ 12
Closed
Open
Pins 1 & 2 closed

IRQ 11
Closed
Open
Pins 2 & 3 closed

IRQ 14
Open
Pins 1 & 2 closed
Open
