DTC-2277VL (400935-89A) Hard Disk/Floppy Controller Settings and Configuration

Card Type	Hard drive controller card
Maximum Onboard Memory	16MB DRAM
Hard Drives supported	Four IDE drives
Floppy drives supported	Two 360KB, 720KB, 1.2MB, or 1.44MB drives
Data Bus	32-bit VESA Local Bus
Card Size	Full-length, full-height card

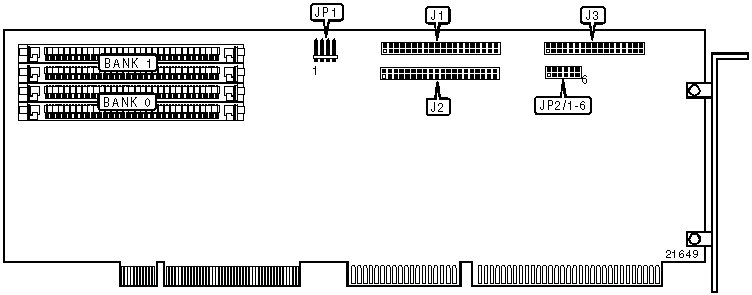

CONNECTIONS
Function	Location	Function	Location
40-pin IDE(AT) connector	J1	34-pin cable connector - floppy drive	J3
40-pin IDE(AT) connector	J2	4-pin connector - drive active LED	JP1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	JP2/4-6	Unidentified

BIOS ADDRESS SELECTION
Address		JP2/1	JP2/2	JP2/3
	C8000	Closed	Open	Open
	CC000	Open	Closed	Open
	D0000	Closed	Closed	Open
	D4000	Open	Open	Closed
	D8000	Closed	Open	Closed
»	DC000	Closed	Closed	Closed
	Disabled	Open	Open	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
512KB	(2) 256KB x 9	None
1MB	(2) 256KB x 9	(2) 256KB x 9
2MB	(2) 1MB x 9	None
4MB	(2) 1MB x 9	(2) 1MB x 9
8MB	(2) 4MB x 9	None
10MB	(2) 4MB x 9	(2) 1MB x 9
16MB	(2) 4MB x 9	(2) 4MB x 9
