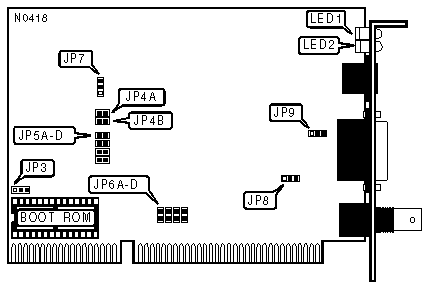

XI321TCN REV. A Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	Unshielded twisted pair RG58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

COMPATABILITY MODE
Setting		JP3
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed
Note:Some systems use non-standard timing. If your system does not work with this card set this option to enabled (Pins 1 & 2 closed).

I/O BASE ADDRESS
Address		JP4A	JP4B
	300h	Closed	Closed
»	320h	Closed	Open
	340h	Open	Closed
	360h	Open	Open

BOOT ROM ADDRESS
Address		JP5A	JP5B	JP5C
	C8000h	Open	Open	Open
»	CC000h	Closed	Open	Closed
	D0000h	Open	Open	Closed

BOOT ROM
Setting		JP5D
»	Disabled	Open
	Enabled	Closed

INTERUPT REQUEST
IRQ		JP6A	JP6B	JP6C	JP6D
	2/9	Closed	Open	Open	Open
	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
»	5	Open	Open	Open	Closed

CABLE TYPE
Type		JP7	JP8	JP9
»	RG58A/U 50ohm coaxial	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
	Unshielded twisted pair	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
	AUI transceiver via DB-15 port	N/A	Pins 2 & 3 closed	Pins 2 & 3 closed

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	Twisted pair network connection is good
LED1	Off	Twisted pair network connection is broken
LED2	On	Collision detected on network
LED2	Off	No collisions detected on network
LED3	On	Data is being transmitted
LED3	Off	Data is not being transmitted
LED4	On	Data is being received
LED4	Off	Data is not being received
