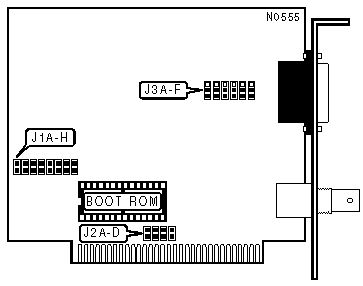

XI301 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Linear bus
Wiring Type	AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial
Boot ROM	Available

BOOT ROM ADDRESS
Address		J1A	J1B	J1C	J1D
	C000h	Closed	Closed	Closed	Closed
	C400h	Closed	Closed	Closed	Open
»	C800h	Closed	Closed	Open	Closed
	CC00h	Closed	Closed	Open	Open
	D000h	Closed	Open	Closed	Closed

I/O BASE ADDRESS
Address		J1E	J1F	J1G	J1H
»	300 - 31Fh	Open	Closed	Closed	Closed
	320 - 33Fh	Open	Closed	Closed	Open
	340 - 35Fh	Open	Closed	Open	Closed
	360 - 37Fh	Open	Closed	Open	Open

INTERRUPT REQUEST
IRQ		J2A	J2B	J2C	J2D
	2	Closed	Open	Open	Open
»	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
	5	Open	Open	Open	Closed

CABLE TYPE
Type		J3A - J3F
»	RG-58A/U 50ohm coaxial	Pins 2 & 3 closed
	AUI transceiver via DB-15 port	Pins 1 & 2 closed
