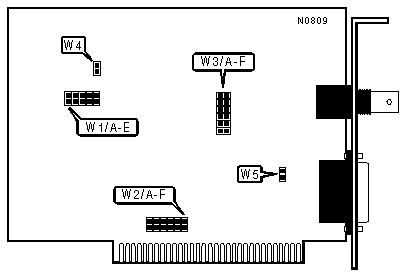

ETHERCARD PLUS Network Card Settings and Configuration

NIC Type:	Ethernet
Transfer Rate:	10Mbps
Data Bus:	8-bit ISA
Topology:	Linear Bus Star
Wiring Type	AUI transceiver via DB-15 port RG58A/U 50ohm coaxial
Boot ROM	Not available

I/O ADDRESS
Address		W1/Jumper B	W1/Jumper C	W1/Jumper D	W1/Jumper E
»	280h	Closed	Closed	Open	Closed
	200h	Closed	Closed	Closed	Closed
	220h	Open	Closed	Closed	Closed
	240h	Closed	Open	Closed	Closed
	260h	Open	Open	Closed	Closed
	2A0h	Open	Closed	Open	Closed
	2C0h	Closed	Open	Open	Closed
	2E0h	Open	Open	Open	Closed
	300h	Closed	Closed	Closed	Open
	320h	Open	Closed	Closed	Open
	340h	Closed	Open	Closed	Open
	360h	Open	Open	Closed	Open
	380h	Closed	Closed	Open	Open
	3A0h	Open	Closed	Open	Open
	3C0h	Closed	Open	Open	Open
	3E0h	Open	Open	Open	Open

WAIT STATE SELECTION
Setting		W1/Jumper A
»	8-16MHz	Open
	6MHz	Closed
Note:This jumper applies only to PC ATs.

INTERRUPT SELECT - W2
IRQ		Jumper A	Jumper B	Jumper C	Jumper D	Jumper E	Jumper F
»	IRQ3	Open	Open	Open	Open	Closed	Open
	IRQ2	Open	Open	Open	Open	Open	Closed
	IRQ4	Open	Open	Open	Closed	Open	Open
	IRQ5	Open	Open	Closed	Open	Open	Open
	IRQ6	Open	Closed	Open	Open	Open	Open
	IRQ7	Closed	Open	Open	Open	Open	Open

CABLE TYPE - W3
Type		Jumpers A-F
»	RG58A/U 50ohm coaxial	Closed
	AUI transceiver via DB-15 port	Open

ETHERNET VERSION
Setting		W4
»	Ethernet Version 2, IEEE 802.3	Open
	Ethernet Version 1	Closed

THIN ETHERNET CABLE LENGTH
Setting		W5
»	Standard	Closed
	300-meter segment	Open
