NI5010-2 Network Card Settings and Configuration







MICOM-INTERLAN, INC.

NI5010-2

NIC Type

Ethernet

Network Transfer Rate

10Mbps

Data Bus

8-bit ISA

Topology

Linear Bus

Wiring Type

AUI transceiver via DB-15 port

Boot ROM

Available

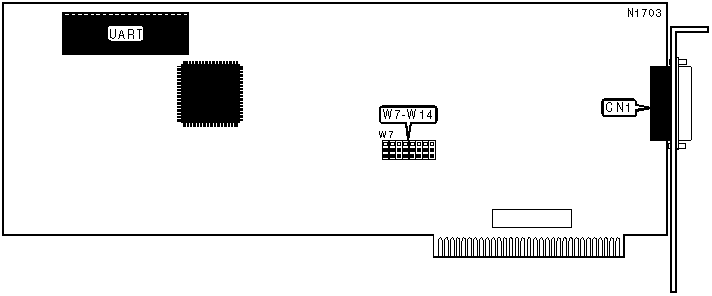

CONNECTIONS

Function

Label

AUI transceiver via DB-15 port

CN1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

IRQ3 enabled

W7

Pins 2 & 3 closed



IRQ3 disabled

W7

Pins 1 & 2 closed

DMA CHANNEL SELECTION

DMA

W8

W14

»

3

Pins 2 & 3 closed

Pins 1 & 2 closed



1

Pins 1 & 2 closed

Pins 1 & 2 closed



Disabled

Pins 2 & 3 closed

Pins 2 & 3 closed

BASE I/O ADDRESS SELECTION

Setting

W9

W10

W11

W12

W13



200h

2 & 3

2 & 3

2 & 3

2 & 3

1 & 2



220h

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2



240h

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2



260h

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2



280h

2 & 3

2 & 3

1 & 2

2 & 3

1 & 2



2A0h

1 & 2

2 & 3

1 & 2

2 & 3

1 & 2



2C0h

2 & 3

1 & 2

1 & 2

2 & 3

1 & 2



2E0h

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

»

300h

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2



320h

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2



340h

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2



360h

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2



380h

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2



3A0h

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2



3C0h

2 & 3

1 & 2

1 & 2

1 & 2

1 & 2



3E0h

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

Note: The pins designated should be in the closed position.
