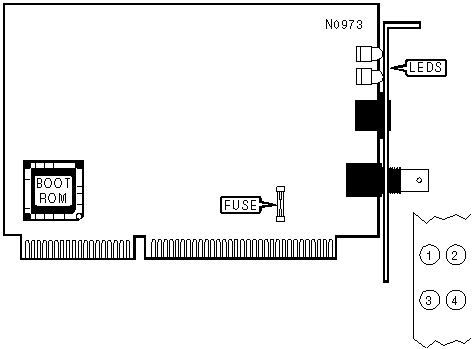

E2212 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus Star
Wiring Type	RG-58A/U 50ohm coaxial Unshielded twisted pair
Boot ROM	Available

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	Blinking	Data is being transmitted
LED1	Green	Off	Data is not being transmitted
LED2	Red	Blinking	Collision detected
LED2	Red	Off	No collision
LED3	Yellow	Blinking	Data is being received
LED3	Yellow	Off	Data is not being received
LED4	Green	On	Network connection is good
LED4	Green	Off	Network connection is broken
Note: LED2 is always off in full duplex mode.
