AE-220TP Network Card Settings and Configuration
ADDTRON TECHNOLOGY COMPANY, LTD.

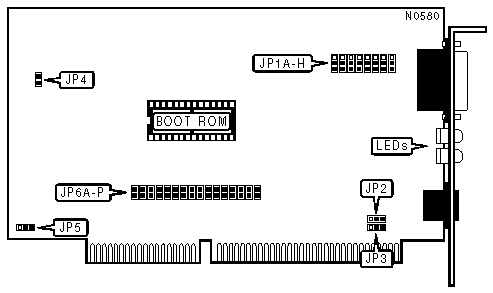

AE-220TP
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear bus |
Wiring Type | Unshielded twisted pair
|
Boot ROM | Available |
CABLE TYPE | |
Type | JP1A-H |
Unshielded twisted pair | Pins 1 & 2 closed |
DIX transceiver via DB-15 port | Pins 2 & 3 closed |
LINK INTEGRITY | ||
Function | JP2 | |
| » | Link intergity enabled | Pins 1 & 2 closed |
Link integrity disabled | Pins 2 & 3 closed | |
Note: If card is used in a pre-10BaseT cabling network, disable the link integrity function. | ||
SEGMENT LENGTH | |
Length | JP3 |
185 meters | Pins 2 & 3 closed |
300 meters | Pins 1 & 2 closed |
WAIT STATE CONFIGURATION | ||
Bus Speed | JP4 | |
6MHz - 8MHz | Open | |
| » | >8MHz | Closed |
ROM SIZE | |
Size | JP5 |
16KB | Pins 2 & 3 closed |
32KB | Pins 1 & 2 closed |
INTERRUPT SETTINGS | |||||||
IRQ | JP6A | JP6B | JP6C | JP6D | JP6E | JP6F | JP6G |
2/9 | Closed | Open | Open | Open | Open | Open | Open |
3 | Open | Closed | Open | Open | Open | Open | Open |
4 | Open | Open | Closed | Open | Open | Open | Open |
5 | Open | Open | Open | Closed | Open | Open | Open |
10 | Open | Open | Open | Open | Closed | Open | Open |
11 | Open | Open | Open | Open | Open | Closed | Open |
12 | Open | Open | Open | Open | Open | Open | Closed |
BASE I/O ADDRESS | |||||
Address | JP6H | JP6I | JP6J | JP6K | |
| » | 300h | Open | Open | Open | Closed |
320h | Open | Open | Closed | Open | |
340h | Open | Closed | Open | Open | |
360h | Closed | Open | Open | Open | |
BOOT ROM ADDRESS | ||||||
Address | JP6L | JP6M | JP6N | JP6O | JP6P | |
C0000h | Closed | Closed | Closed | Closed | Closed | |
C4000h | Closed | Closed | Closed | Closed | Open | |
| » | C8000h | Closed | Closed | Closed | Open | Closed |
CC000h | Closed | Closed | Closed | Open | Open | |
D0000h | Closed | Closed | Open | Closed | Closed | |
D4000h | Closed | Closed | Open | Closed | Open | |
D8000h | Closed | Closed | Open | Open | Closed | |
DC000h | Closed | Closed | Open | Open | Open | |
E0000h | Closed | Open | Closed | Closed | Closed | |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Red | Off | Power Off/card or link failure |
LED1 | Red | Blinking | Data is being transmitted |
LED1 | Red | On | Data is not being transmitted |
LED2 | Green | Off | Power Off/card or link failure |
LED2 | Green | Blinking | Data is being received |
LED2 | Green | On | Data is not being received/link integrity established |
LED3 | Yellow | Off | Normal operation |
LED3 | Yellow | On | Collision detected on network |
LED4 | Orange | Off | Normal operation |
LED4 | Orange | On | Card is transmitting for an extended time (jabber) |
Note:LED1 and LED2 only function when installed on a 10BaseT network. LED2 is also only functional when link integrity is enabled. | |||
