PF5000HX2 SBC Motherboard Settings and Configuration

Device Type	Single board computer
Processor	Pentium
Processor Speed	100/133/166MHz
Chip Set	Intel 430HX
Maximum Onboard Memory	128MB
Cache	256/512KB
BIOS	Unidentified
Dimensions	338mm x 122mm
I/O Options	Floppy drive interface, IDE interface, parallel port, serial ports (2), cache slot

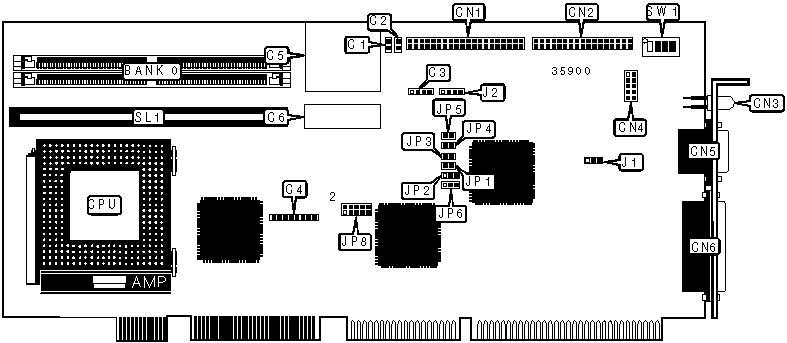

CONNECTIONS
Purpose	Location	Purpose	Location
Temperature sensor connector	C1	Floppy drive interface	CN2
IDE interface LED	C2	Temperature LED	CN3
Speaker	C3	Serial port 2	CN4
Keyboard connector	C4	Serial port 1	CN5
CompactFlash connector	C5	Parallel port	CN6
CompactFlash connector	C6	Cache slot	SL1
IDE interface	CN1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	J1	Unidentified
»	Factory configured - do not alter	J2	Unidentified
»	Monitor type select color	SW1/1	On
	Monitor type select monochrome	SW1/1	Off
»	Flash BIOS enabled; auxiliary ROM disabled	SW1/2	Off
	Flash BIOS disabled; auxiliary ROM enabled	SW1/2	On
»	CMOS memory normal operation	SW1/3	Off
	CMOS memory clear	SW1/3	On
»	Factory configured - do not alter	SW1/4	Off

SIMM CONFIGURATION
Size	Bank 0
8MB	(2) 1M x 36
16MB	(2) 2M x 36
32MB	(2) 4M x 36
64MB	(2) 8M x 36
128MB	(2) 16M x 36

CACHE CONFIGURATION
Size	SL1
256KB	256KB module installed
512KB	512KB module installed

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	JP8
100MHz	66MHz	1.5x	2 & 4, 7 & 9, 8 & 10
133MHz	66MHz	2x	2 & 4, 6 & 8, 7 & 9
166MHz	66MHz	2.5x	2 & 4, 5 & 7, 6 & 8
Note: Pins designated should be in the closed position.

DIGITAL THERMOMETER ON COM2 SELECTION
Setting		JP2	JP6
»	Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed
	Enabled	Pins 2 & 3 closed	Pins 2 & 3 closed

SERIAL PORT 2 SELECTION
Setting		JP1	JP3	JP4	JP5
»	RS-232	Open	Closed	Open	Open
	RS-422	Closed	Open	Closed	Closed
