P5000HX2 SBC Motherboard Settings and Configuration

TEXAS MICRO, INC.

P5000HX2 SBC

Device Type
Single board computer
Processor
Pentium
Processor Speed
100/133/166MHz
Chip Set
Intel 430HX
Maximum Onboard Memory
256MB
Cache
256/512KB
BIOS
Unidentified
Dimensions
338mm x 122mm
I/O Options
Floppy drive interface, IDE interface, SCSI interface, parallel port, PS/2 mouse interface, serial ports (2), cache slot, USB connectors (2)

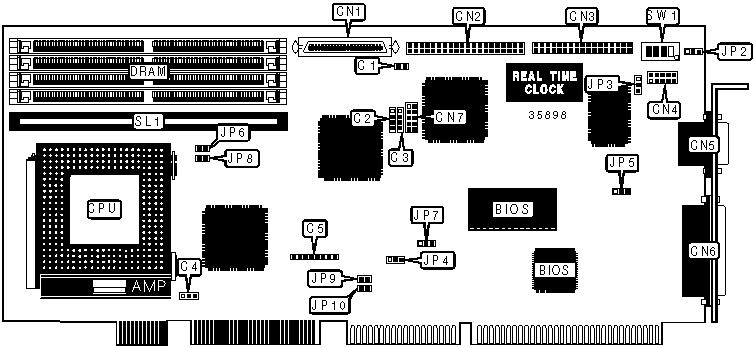

CONNECTIONS
Purpose
Location
Purpose
Location
IDE interface LED
C1
Floppy drive interface
CN3
USB connector 1
C2
Serial port 2
CN4
USB connector 2
C3
Serial port 1
CN5
Chassis fan power
C4
Parallel port
CN6
Keyboard connector
C5
PS/2 mouse interface
CN7
SCSI interface
CN1
Cache slot
SL1
IDE interface
CN2

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Watchdog timer disabled
JP4
Pins 2 & 3 closed

Watchdog timer enabled
JP4
Pins 1 & 2 closed
»
Next Step OS select normal operation
JP7
Pins 2 & 3 closed

Next Step OS select running Next Step & having PS/2 problems
JP7
Pins 1 & 2 closed
»
Monitor type select color
SW1/1
On

Monitor type select monochrome
SW1/1
Off
»
Flash BIOS enabled; auxiliary ROM disabled
SW1/2
Off

Flash BIOS disabled; auxiliary ROM enabled
SW1/2
On
»
CMOS memory normal operation
SW1/3
Off

CMOS memory clear
SW1/3
On
»
I/O port address select 270/271
SW1/4
Off

I/O port address select 370/371
SW1/4
On

SIMM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 36
None
16MB
(2) 2M x 36
None
16MB
(2) 1M x 36
(2) 1M x 36
24MB
(2) 2M x 36
(2) 1M x 36
32MB
(2) 4M x 36
None
32MB
(2) 2M x 36
(2) 2M x 36
40MB
(2) 4M x 36
(2) 1M x 36
48MB
(2) 4M x 36
(2) 2M x 36
64MB
(2) 8M x 36
None

SIMM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
64MB
(2) 4M x 36
(2) 4M x 36
72MB
(2) 8M x 36
(2) 1M x 36
80MB
(2) 8M x 36
(2) 2M x 36
96MB
(2) 8M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 8M x 36
128MB
(2) 16M x 36
None
136MB
(2) 16M x 36
(2) 1M x 36
144MB
(2) 16M x 36
(2) 2M x 36
160MB
(2) 16M x 36
(2) 4M x 36
192MB
(2) 16M x 36
(2) 8M x 36
256MB
(2) 16M x 36
(2) 16M x 36

CACHE CONFIGURATION
Size
SL1
256KB
256KB module installed
512KB
512KB module installed

CPU SPEED SELECTION
CPU speed
Clock speed
Multiplier
JP6
JP8
JP9
JP10
100MHz
66MHz
1.5x
Open
Open
Open
Closed
133MHz
66MHz
2x
Open
Closed
Open
Closed
166MHz
66MHz
2.5x
Closed
Closed
Open
Closed

SERIAL PORT 2 SELECTION
Setting
JP2
JP3
JP5
»
RS-232
Pins 2 & 3 closed
Pins 2 & 3 closed
Pins 2 & 3 closed

RS-422
Pins 1 & 2 closed
Pins 1 & 2 closed
Pins 1 & 2 closed
