HOT-571 Motherboard Settings and Configuration

SHUTTLE COMPUTER INTERNATIONAL, INC.

HOT-571

Device Type
Mainboard
Processor
CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/
AM K5/AM K6/Pentium
Processor Speed
75/90/100/120/133/150/166/200/233MHz
Chip Set
Intel
Video Chip Set
None
Maximum Onboard Memory
256MB (EDO & SDRAM supported)
Maximum Video Memory
None
Cache
512KB
BIOS
Award
Dimensions
280mm x 220mm
I/O Options
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector
NPU Options
None

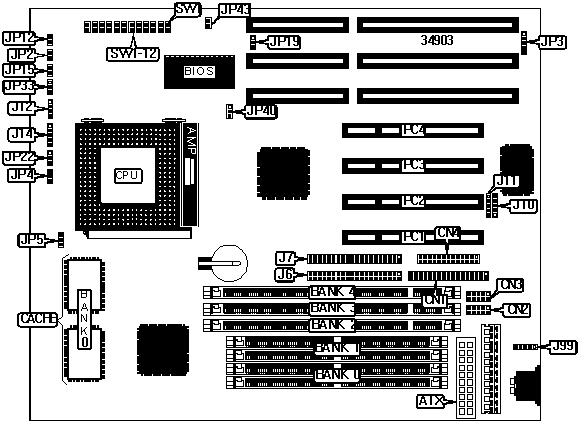

CONNECTIONS
Purpose
Location
Purpose
Location
ATX power connector
ATX
PS/2 mouse interface
J99
Floppy drive interface
CN1
Soft off power supply
JP2
Serial port 1
CN2
IR connector
JP3
Serial port 2
CN3
CPU fan power
JP4
Parallel port
CN4
Chassis fan power
JP5
IDE interface 1
J6
Reset switch
JP12
IDE interface 2
J7
Green PC connector
JP15
USB connector 1
J10
IDE interface LED
JP22
USB connector 2
J11
Green PC LED
JP33
Speaker
J12
32-bit PCI slots
PC1 – PC4
Power LED & keylock
J14

USER CONFIGURABLE SETTINGS
Function
Label
Position

Flash BIOS voltage select 12v
JP19
Pins 1 & 2 closed

Flash BIOS voltage select 5v
JP19
Pins 2 & 3 closed
»
CMOS memory normal operation
JP40
Pins 2 & 3 closed

CMOS memory clear
JP40
Pins 1 & 2 closed

SIMM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 36
None
16MB
(2) 2M x 36
None
16MB
(2) 1M x 36
(2) 1M x 36
24MB
(2) 2M x 36
(2) 1M x 36
32MB
(2) 4M x 36
None
32MB
(2) 2M x 36
(2) 2M x 36
40MB
(2) 4M x 36
(2) 1M x 36
48MB
(2) 4M x 36
(2) 2M x 36
64MB
(2) 8M x 36
None
64MB
(2) 4M x 36
(2) 4M x 36
72MB
(2) 8M x 36
(2) 1M x 36
80MB
(2) 8M x 36
(2) 2M x 36
96MB
(2) 8M x 36
(2) 4M x 36

SIMM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
128MB
(2) 8M x 36
(2) 8M x 36
128MB
(2) 16M x 36
None
136MB
(2) 16M x 36
(2) 1M x 36
144MB
(2) 16M x 36
(2) 2M x 36
160MB
(2) 16M x 36
(2) 4M x 36
192MB
(2) 16M x 36
(2) 8M x 36
256MB
(2) 16M x 36
(2) 16M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size
Bank 2
Bank 3
Bank 4
8MB
(1) 1M x 64
None
None
16MB
(1) 2M x 64
None
None
16MB
(1) 1M x 64
(1) 1M x 64
None
24MB
(1) 2M x 64
(1) 1M x 64
None
24MB
(1) 1M x 64
(1) 1M x 64
(1) 1M x 64
32MB
(1) 4M x 64
None
None
32MB
(1) 2M x 64
(1) 1M x 64
(1) 1M x 64
32MB
(1) 2M x 64
(1) 2M x 64
None
40MB
(1) 4M x 64
(1) 1M x 64
None
40MB
(1) 2M x 64
(1) 2M x 64
(1) 1M x 64
48MB
(1) 4M x 64
(1) 1M x 64
(1) 1M x 64
48MB
(1) 4M x 64
(1) 2M x 64
None
48MB
(1) 2M x 64
(1) 2M x 64
(1) 2M x 64
56MB
(1) 4M x 64
(1) 2M x 64
(1) 1M x 64
64MB
(1) 8M x 64
None
None
64MB
(1) 4M x 64
(1) 2M x 64
(1) 2M x 64
64MB
(1) 4M x 64
(1) 4M x 64
None
72MB
(1) 8M x 64
(1) 1M x 64
None
72MB
(1) 4M x 64
(1) 4M x 64
(1) 1M x 64
80MB
(1) 8M x 64
(1) 1M x 64
(1) 1M x 64
80MB
(1) 8M x 64
(1) 2M x 64
None
80MB
(1) 4M x 64
(1) 4M x 64
(1) 2M x 64
88MB
(1) 8M x 64
(1) 2M x 64
(1) 1M x 64

DIMM CONFIGURATION (CON’T)
Size
Bank 2
Bank 3
Bank 4
96MB
(1) 8M x 64
(1) 2M x 64
(1) 2M x 64
96MB
(1) 8M x 64
(1) 4M x 64
None
96MB
(1) 4M x 64
(1) 4M x 64
(1) 4M x 64
104MB
(1) 8M x 64
(1) 4M x 64
(1) 1M x 64
112MB
(1) 8M x 64
(1) 4M x 64
(1) 2M x 64
128MB
(1) 16M x 64
None
None
128MB
(1) 8M x 64
(1) 4M x 64
(1) 4M x 64
128MB
(1) 8M x 64
(1) 8M x 64
None
136MB
(1) 16M x 64
(1) 1M x 64
None
136MB
(1) 8M x 64
(1) 8M x 64
(1) 1M x 64
144MB
(1) 16M x 64
(1) 1M x 64
(1) 1M x 64
144MB
(1) 16M x 64
(1) 2M x 64
None
144MB
(1) 8M x 64
(1) 8M x 64
(1) 2M x 64
152MB
(1) 16M x 64
(1) 2M x 64
(1) 1M x 64
160MB
(1) 16M x 64
(1) 2M x 64
(1) 2M x 64
160MB
(1) 16M x 64
(1) 4M x 64
None
160MB
(1) 8M x 64
(1) 8M x 64
(1) 4M x 64
168MB
(1) 16M x 64
(1) 4M x 64
(1) 1M x 64
176MB
(1) 16M x 64
(1) 4M x 64
(1) 2M x 64
192MB
(1) 16M x 64
(1) 4M x 64
(1) 4M x 64
192MB
(1) 16M x 64
(1) 8M x 64
None
192MB
(1) 8M x 64
(1) 8M x 64
(1) 8M x 64
200MB
(1) 16M x 64
(1) 8M x 64
(1) 1M x 64
208MB
(1) 16M x 64
(1) 8M x 64
(1) 2M x 64
224MB
(1) 16M x 64
(1) 8M x 64
(1) 4M x 64
256MB
(1) 16M x 64
(1) 8M x 64
(1) 8M x 64
Note: Board accepts SDRAM memory.

CACHE CONFIGURATION
Size
Bank 0
256KB
(2) 32K x 32
512KB
(2) 64K x 32

CPU SPEED SELECTION (CX 6X86)
CPU speed
Clock speed
Multiplier
SW1
SW2
SW3
SW4
SW5
SW6
120MHz
50MHz
2x
Closed
Closed
Closed
Closed
Open
Open
133MHz
55MHz
2x
Closed
Closed
Open
Closed
Open
Open
150MHz
60MHz
2x
Closed
Open
Open
Closed
Open
Open
166MHz
66MHz
2x
Open
Open
Open
Closed
Open
Open

CPU SPEED SELECTION (IBM 6X86)
CPU speed
Clock speed
Multiplier
SW1
SW2
SW3
SW4
SW5
SW6
120MHz
50MHz
2x
Closed
Closed
Closed
Closed
Open
Open
133MHz
55MHz
2x
Closed
Closed
Open
Closed
Open
Open
150MHz
60MHz
2x
Closed
Open
Open
Closed
Open
Open
166MHz
66MHz
2x
Open
Open
Open
Closed
Open
Open

CPU SPEED SELECTION (CX 6X86L)
CPU speed
Clock speed
Multiplier
SW1
SW2
SW3
SW4
SW5
SW6
150MHz
60MHz
2x
Closed
Open
Open
Closed
Open
Open
166MHz
66MHz
2x
Open
Open
Open
Closed
Open
Open

CPU SPEED SELECTION (IBM 6X86L)
CPU speed
Clock speed
Multiplier
SW1
SW2
SW3
SW4
SW5
SW6
150MHz
60MHz
2x
Closed
Open
Open
Closed
Open
Open
166MHz
66MHz
2x
Open
Open
Open
Closed
Open
Open

CPU SPEED SELECTION (CX 6X86MX)
CPU speed
Clock speed
Multiplier
SW1
SW2
SW3
SW4
SW5
SW6
166MHz
66MHz
2.5x
Open
Open
Open
Closed
Closed
Open
200MHz
66MHz
2.5x
Open
Open
Open
Closed
Closed
Open
233MHz
66MHz
3x
Open
Open
Open
Open
Open
Closed

CPU SPEED SELECTION (IBM 6X86MX)
CPU speed
Clock speed
Multiplier
SW1
SW2
SW3
SW4
SW5
SW6
166MHz
66MHz
2.5x
Open
Open
Open
Closed
Closed
Open
200MHz
66MHz
2.5x
Open
Open
Open
Closed
Closed
Open
233MHz
66MHz
3x
Open
Open
Open
Open
Open
Closed

CPU SPEED SELECTION (AM K5)
CPU speed
Clock speed
Multiplier
SW1
SW2
SW3
SW4
SW5
SW6
75MHz
50MHz
1.5x
Closed
Closed
Closed
Open
Open
Open
90MHz
60MHz
1.5x
Closed
Open
Open
Open
Open
Open
100MHz
66MHz
1.5x
Open
Open
Open
Open
Open
Open
120MHz
60MHz
1.5x
Closed
Open
Open
Open
Open
Open
133MHz
66MHz
1.5x
Open
Open
Open
Open
Open
Open
150MHz
60MHz
2.5x
Closed
Open
Open
Closed
Closed
Open
166MHz
66MHz
2.5x
Open
Open
Open
Closed
Closed
Open

CPU SPEED SELECTION (AM K6)
CPU speed
Clock speed
Multiplier
SW1
SW2
SW3
SW4
SW5
SW6
166MHz
66MHz
2.5x
Open
Open
Open
Closed
Closed
Open
200MHz
66MHz
3x
Open
Open
Open
Open
Open
Closed
233MHz
66MHz
3.5x
Open
Open
Open
Open
Open
Open

CPU SPEED SELECTION (INTEL)
CPU speed
Clock speed
Multiplier
SW1
SW2
SW3
SW4
SW5
SW6
75MHz
50MHz
1.5x
Closed
Closed
Closed
Open
Open
Open
90MHz
60MHz
1.5x
Closed
Open
Open
Open
Open
Open
100MHz
66MHz
1.5x
Open
Open
Open
Open
Open
Open
120MHz
60MHz
2x
Closed
Open
Open
Closed
Open
Open
133MHz
66MHz
2x
Open
Open
Open
Closed
Open
Open
150MHz
60MHz
2.5x
Closed
Open
Open
Closed
Closed
Open
166MHz
66MHz
2.5x
Open
Open
Open
Closed
Closed
Open
200MHz
66MHz
3x
Open
Open
Open
Open
Open
Closed

CPU SPEED SELECTION (INTEL MMX)
CPU speed
Clock speed
Multiplier
SW1
SW2
SW3
SW4
SW5
SW6
166MHz
66MHz
2.5x
Open
Open
Open
Closed
Closed
Open
200MHz
66MHz
3x
Open
Open
Open
Open
Open
Closed
233MHz
66MHz
3.5x
Open
Open
Open
Open
Open
Open

CPU VOLTAGE SELECTION
Voltage
SW7
SW8
SW9
SW10
SW11
SW12
2.8v
Open
Open
Open
Open
Open
Open
2.9v
Closed
Open
Open
Open
Open
Open
3.0v
Open
Closed
Open
Open
Open
Open
3.1v
Closed
Closed
Open
Open
Open
Open
3.2v
Open
Open
Closed
Open
Open
Open
3.3v
Open
Open
Open
Open
Open
Open
3.52v
Closed
Open
Open
Open
Open
Open

CPU VOLTAGE AUTO DETECT SELECTION
Setting
JP43
Enabled
Closed
Disabled
Open

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

HOT-571 Motherboard Settings and Configuration

Search

My Books

Discover

Device Type	Mainboard
Processor	CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/ AM K5/AM K6/Pentium
Processor Speed	75/90/100/120/133/150/166/200/233MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	256MB (EDO & SDRAM supported)
Maximum Video Memory	None
Cache	512KB
BIOS	Award
Dimensions	280mm x 220mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power connector	ATX	PS/2 mouse interface	J99
Floppy drive interface	CN1	Soft off power supply	JP2
Serial port 1	CN2	IR connector	JP3
Serial port 2	CN3	CPU fan power	JP4
Parallel port	CN4	Chassis fan power	JP5
IDE interface 1	J6	Reset switch	JP12
IDE interface 2	J7	Green PC connector	JP15
USB connector 1	J10	IDE interface LED	JP22
USB connector 2	J11	Green PC LED	JP33
Speaker	J12	32-bit PCI slots	PC1 – PC4
Power LED & keylock	J14

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Flash BIOS voltage select 12v	JP19	Pins 1 & 2 closed
	Flash BIOS voltage select 5v	JP19	Pins 2 & 3 closed
»	CMOS memory normal operation	JP40	Pins 2 & 3 closed
	CMOS memory clear	JP40	Pins 1 & 2 closed

SIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36
96MB	(2) 8M x 36	(2) 4M x 36

SIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	None
136MB	(2) 16M x 36	(2) 1M x 36
144MB	(2) 16M x 36	(2) 2M x 36
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size	Bank 2	Bank 3	Bank 4
8MB	(1) 1M x 64	None	None
16MB	(1) 2M x 64	None	None
16MB	(1) 1M x 64	(1) 1M x 64	None
24MB	(1) 2M x 64	(1) 1M x 64	None
24MB	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64
32MB	(1) 4M x 64	None	None
32MB	(1) 2M x 64	(1) 1M x 64	(1) 1M x 64
32MB	(1) 2M x 64	(1) 2M x 64	None
40MB	(1) 4M x 64	(1) 1M x 64	None
40MB	(1) 2M x 64	(1) 2M x 64	(1) 1M x 64
48MB	(1) 4M x 64	(1) 1M x 64	(1) 1M x 64
48MB	(1) 4M x 64	(1) 2M x 64	None
48MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
56MB	(1) 4M x 64	(1) 2M x 64	(1) 1M x 64
64MB	(1) 8M x 64	None	None
64MB	(1) 4M x 64	(1) 2M x 64	(1) 2M x 64
64MB	(1) 4M x 64	(1) 4M x 64	None
72MB	(1) 8M x 64	(1) 1M x 64	None
72MB	(1) 4M x 64	(1) 4M x 64	(1) 1M x 64
80MB	(1) 8M x 64	(1) 1M x 64	(1) 1M x 64
80MB	(1) 8M x 64	(1) 2M x 64	None
80MB	(1) 4M x 64	(1) 4M x 64	(1) 2M x 64
88MB	(1) 8M x 64	(1) 2M x 64	(1) 1M x 64

DIMM CONFIGURATION (CON’T)
Size	Bank 2	Bank 3	Bank 4
96MB	(1) 8M x 64	(1) 2M x 64	(1) 2M x 64
96MB	(1) 8M x 64	(1) 4M x 64	None
96MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
104MB	(1) 8M x 64	(1) 4M x 64	(1) 1M x 64
112MB	(1) 8M x 64	(1) 4M x 64	(1) 2M x 64
128MB	(1) 16M x 64	None	None
128MB	(1) 8M x 64	(1) 4M x 64	(1) 4M x 64
128MB	(1) 8M x 64	(1) 8M x 64	None
136MB	(1) 16M x 64	(1) 1M x 64	None
136MB	(1) 8M x 64	(1) 8M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 1M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 2M x 64	None
144MB	(1) 8M x 64	(1) 8M x 64	(1) 2M x 64
152MB	(1) 16M x 64	(1) 2M x 64	(1) 1M x 64
160MB	(1) 16M x 64	(1) 2M x 64	(1) 2M x 64
160MB	(1) 16M x 64	(1) 4M x 64	None
160MB	(1) 8M x 64	(1) 8M x 64	(1) 4M x 64
168MB	(1) 16M x 64	(1) 4M x 64	(1) 1M x 64
176MB	(1) 16M x 64	(1) 4M x 64	(1) 2M x 64
192MB	(1) 16M x 64	(1) 4M x 64	(1) 4M x 64
192MB	(1) 16M x 64	(1) 8M x 64	None
192MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
200MB	(1) 16M x 64	(1) 8M x 64	(1) 1M x 64
208MB	(1) 16M x 64	(1) 8M x 64	(1) 2M x 64
224MB	(1) 16M x 64	(1) 8M x 64	(1) 4M x 64
256MB	(1) 16M x 64	(1) 8M x 64	(1) 8M x 64
Note: Board accepts SDRAM memory.

CACHE CONFIGURATION
Size	Bank 0
256KB	(2) 32K x 32
512KB	(2) 64K x 32

CPU SPEED SELECTION (CX 6X86)
CPU speed	Clock speed	Multiplier	SW1	SW2	SW3	SW4	SW5	SW6
120MHz	50MHz	2x	Closed	Closed	Closed	Closed	Open	Open
133MHz	55MHz	2x	Closed	Closed	Open	Closed	Open	Open
150MHz	60MHz	2x	Closed	Open	Open	Closed	Open	Open
166MHz	66MHz	2x	Open	Open	Open	Closed	Open	Open

CPU SPEED SELECTION (IBM 6X86)
CPU speed	Clock speed	Multiplier	SW1	SW2	SW3	SW4	SW5	SW6
120MHz	50MHz	2x	Closed	Closed	Closed	Closed	Open	Open
133MHz	55MHz	2x	Closed	Closed	Open	Closed	Open	Open
150MHz	60MHz	2x	Closed	Open	Open	Closed	Open	Open
166MHz	66MHz	2x	Open	Open	Open	Closed	Open	Open

CPU SPEED SELECTION (CX 6X86L)
CPU speed	Clock speed	Multiplier	SW1	SW2	SW3	SW4	SW5	SW6
150MHz	60MHz	2x	Closed	Open	Open	Closed	Open	Open
166MHz	66MHz	2x	Open	Open	Open	Closed	Open	Open

CPU SPEED SELECTION (IBM 6X86L)
CPU speed	Clock speed	Multiplier	SW1	SW2	SW3	SW4	SW5	SW6
150MHz	60MHz	2x	Closed	Open	Open	Closed	Open	Open
166MHz	66MHz	2x	Open	Open	Open	Closed	Open	Open

CPU SPEED SELECTION (CX 6X86MX)
CPU speed	Clock speed	Multiplier	SW1	SW2	SW3	SW4	SW5	SW6
166MHz	66MHz	2.5x	Open	Open	Open	Closed	Closed	Open
200MHz	66MHz	2.5x	Open	Open	Open	Closed	Closed	Open
233MHz	66MHz	3x	Open	Open	Open	Open	Open	Closed

CPU SPEED SELECTION (IBM 6X86MX)
CPU speed	Clock speed	Multiplier	SW1	SW2	SW3	SW4	SW5	SW6
166MHz	66MHz	2.5x	Open	Open	Open	Closed	Closed	Open
200MHz	66MHz	2.5x	Open	Open	Open	Closed	Closed	Open
233MHz	66MHz	3x	Open	Open	Open	Open	Open	Closed

CPU SPEED SELECTION (AM K5)
CPU speed	Clock speed	Multiplier	SW1	SW2	SW3	SW4	SW5	SW6
75MHz	50MHz	1.5x	Closed	Closed	Closed	Open	Open	Open
90MHz	60MHz	1.5x	Closed	Open	Open	Open	Open	Open
100MHz	66MHz	1.5x	Open	Open	Open	Open	Open	Open
120MHz	60MHz	1.5x	Closed	Open	Open	Open	Open	Open
133MHz	66MHz	1.5x	Open	Open	Open	Open	Open	Open
150MHz	60MHz	2.5x	Closed	Open	Open	Closed	Closed	Open
166MHz	66MHz	2.5x	Open	Open	Open	Closed	Closed	Open

CPU SPEED SELECTION (AM K6)
CPU speed	Clock speed	Multiplier	SW1	SW2	SW3	SW4	SW5	SW6
166MHz	66MHz	2.5x	Open	Open	Open	Closed	Closed	Open
200MHz	66MHz	3x	Open	Open	Open	Open	Open	Closed
233MHz	66MHz	3.5x	Open	Open	Open	Open	Open	Open

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	SW1	SW2	SW3	SW4	SW5	SW6
75MHz	50MHz	1.5x	Closed	Closed	Closed	Open	Open	Open
90MHz	60MHz	1.5x	Closed	Open	Open	Open	Open	Open
100MHz	66MHz	1.5x	Open	Open	Open	Open	Open	Open
120MHz	60MHz	2x	Closed	Open	Open	Closed	Open	Open
133MHz	66MHz	2x	Open	Open	Open	Closed	Open	Open
150MHz	60MHz	2.5x	Closed	Open	Open	Closed	Closed	Open
166MHz	66MHz	2.5x	Open	Open	Open	Closed	Closed	Open
200MHz	66MHz	3x	Open	Open	Open	Open	Open	Closed

CPU SPEED SELECTION (INTEL MMX)
CPU speed	Clock speed	Multiplier	SW1	SW2	SW3	SW4	SW5	SW6
166MHz	66MHz	2.5x	Open	Open	Open	Closed	Closed	Open
200MHz	66MHz	3x	Open	Open	Open	Open	Open	Closed
233MHz	66MHz	3.5x	Open	Open	Open	Open	Open	Open

CPU VOLTAGE SELECTION
Voltage	SW7	SW8	SW9	SW10	SW11	SW12
2.8v	Open	Open	Open	Open	Open	Open
2.9v	Closed	Open	Open	Open	Open	Open
3.0v	Open	Closed	Open	Open	Open	Open
3.1v	Closed	Closed	Open	Open	Open	Open
3.2v	Open	Open	Closed	Open	Open	Open
3.3v	Open	Open	Open	Open	Open	Open
3.52v	Closed	Open	Open	Open	Open	Open

CPU VOLTAGE AUTO DETECT SELECTION
Setting	JP43
Enabled	Closed
Disabled	Open
