HOT-569 (VER. 2.0) Motherboard Settings and Configuration

SHUTTLE COMPUTER INTERNATIONAL, INC.

HOT-569 (VER. 2.0)

Device Type
Mainboard
Processor
CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/
AM K5/AM K6/Pentium
Processor Speed
75/90/100/120/133/150/166/200/233/266MHz
Chip Set
Intel
Video Chip Set
None
Maximum Onboard Memory
256MB (EDO & SDRAM supported)
Maximum Video Memory
None
Cache
512KB
BIOS
Award
Dimensions
280mm x 220mm
I/O Options
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector
NPU Options
None

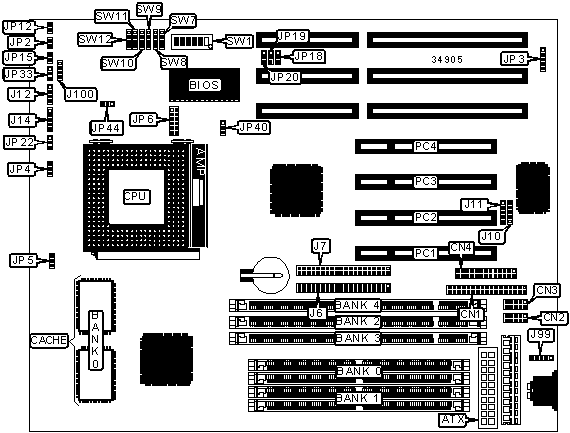

CONNECTIONS
Purpose
Location
Purpose
Location
ATX power connector
ATX
PS/2 mouse interface
J99
Floppy drive interface
CN1
Soft off power supply
JP2
Serial port 1
CN2
IR connector
JP3
Serial port 2
CN3
Chassis fan power
JP4
Parallel port
CN4
Chassis fan power
JP5
IDE interface 1
J6
EISCA cooler connector
JP6
IDE interface 2
J7
Reset switch
JP12
USB connector
J10
Green PC connector
JP15
USB connector
J11
IDE interface LED
JP22
Speaker
J12
Green PC LED
JP33
Power LED & keylock
J14
32-bit PCI slots
PC1 – PC4

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Factory configured - do not alter
J100
Unidentified
»
Factory configured - do not alter
JP18
Unidentified

Flash BIOS voltage select 12v
JP19
Pins 1 & 2 closed

Flash BIOS voltage select 5v
JP19
Pins 2 & 3 closed
»
Factory configured - do not alter
JP20
Unidentified
»
CMOS memory normal operation
JP40
Pins 1 & 2 closed

CMOS memory clear
JP40
Pins 2 & 3 closed
»
Factory configured - do not alter
JP44
Unidentified

SIMM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 36
None
16MB
(2) 2M x 36
None
16MB
(2) 1M x 36
(2) 1M x 36
24MB
(2) 2M x 36
(2) 1M x 36
32MB
(2) 4M x 36
None
32MB
(2) 2M x 36
(2) 2M x 36
40MB
(2) 4M x 36
(2) 1M x 36
48MB
(2) 4M x 36
(2) 2M x 36
64MB
(2) 8M x 36
None

SIMM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
64MB
(2) 4M x 36
(2) 4M x 36
72MB
(2) 8M x 36
(2) 1M x 36
80MB
(2) 8M x 36
(2) 2M x 36
96MB
(2) 8M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 8M x 36
128MB
(2) 16M x 36
None
136MB
(2) 16M x 36
(2) 1M x 36
144MB
(2) 16M x 36
(2) 2M x 36
160MB
(2) 16M x 36
(2) 4M x 36
192MB
(2) 16M x 36
(2) 8M x 36
256MB
(2) 16M x 36
(2) 16M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size
Bank 2
Bank 3
Bank 4
8MB
(1) 1M x 64
None
None
16MB
(1) 2M x 64
None
None
16MB
(1) 1M x 64
(1) 1M x 64
None
24MB
(1) 2M x 64
(1) 1M x 64
None
24MB
(1) 1M x 64
(1) 1M x 64
(1) 1M x 64
32MB
(1) 4M x 64
None
None
32MB
(1) 2M x 64
(1) 1M x 64
(1) 1M x 64
32MB
(1) 2M x 64
(1) 2M x 64
None
40MB
(1) 4M x 64
(1) 1M x 64
None
40MB
(1) 2M x 64
(1) 2M x 64
(1) 1M x 64
48MB
(1) 4M x 64
(1) 1M x 64
(1) 1M x 64
48MB
(1) 4M x 64
(1) 2M x 64
None
48MB
(1) 2M x 64
(1) 2M x 64
(1) 2M x 64
56MB
(1) 4M x 64
(1) 2M x 64
(1) 1M x 64
64MB
(1) 8M x 64
None
None
64MB
(1) 4M x 64
(1) 2M x 64
(1) 2M x 64
64MB
(1) 4M x 64
(1) 4M x 64
None
72MB
(1) 8M x 64
(1) 1M x 64
None
72MB
(1) 4M x 64
(1) 4M x 64
(1) 1M x 64

DIMM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
80MB
(1) 8M x 64
(1) 1M x 64
(1) 1M x 64
80MB
(1) 8M x 64
(1) 2M x 64
None
80MB
(1) 4M x 64
(1) 4M x 64
(1) 2M x 64
88MB
(1) 8M x 64
(1) 2M x 64
(1) 1M x 64
96MB
(1) 8M x 64
(1) 2M x 64
(1) 2M x 64
96MB
(1) 8M x 64
(1) 4M x 64
None
96MB
(1) 4M x 64
(1) 4M x 64
(1) 4M x 64
104MB
(1) 8M x 64
(1) 4M x 64
(1) 1M x 64
112MB
(1) 8M x 64
(1) 4M x 64
(1) 2M x 64
128MB
(1) 16M x 64
None
None
128MB
(1) 8M x 64
(1) 4M x 64
(1) 4M x 64
128MB
(1) 8M x 64
(1) 8M x 64
None
136MB
(1) 16M x 64
(1) 1M x 64
None
136MB
(1) 8M x 64
(1) 8M x 64
(1) 1M x 64
144MB
(1) 16M x 64
(1) 1M x 64
(1) 1M x 64
144MB
(1) 16M x 64
(1) 2M x 64
None
144MB
(1) 8M x 64
(1) 8M x 64
(1) 2M x 64
152MB
(1) 16M x 64
(1) 2M x 64
(1) 1M x 64
160MB
(1) 16M x 64
(1) 2M x 64
(1) 2M x 64
160MB
(1) 16M x 64
(1) 4M x 64
None
160MB
(1) 8M x 64
(1) 8M x 64
(1) 4M x 64
168MB
(1) 16M x 64
(1) 4M x 64
(1) 1M x 64
176MB
(1) 16M x 64
(1) 4M x 64
(1) 2M x 64
192MB
(1) 16M x 64
(1) 4M x 64
(1) 4M x 64
192MB
(1) 16M x 64
(1) 8M x 64
None
192MB
(1) 8M x 64
(1) 8M x 64
(1) 8M x 64
200MB
(1) 16M x 64
(1) 8M x 64
(1) 1M x 64
208MB
(1) 16M x 64
(1) 8M x 64
(1) 2M x 64
224MB
(1) 16M x 64
(1) 8M x 64
(1) 4M x 64
256MB
(1) 16M x 64
(1) 8M x 64
(1) 8M x 64
Note: Board accepts SDRAM memory.

CACHE CONFIGURATION
Size
Bank 0
512KB
(2) 64K x 32

CPU SPEED SELECTION (CX 6X86)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
120MHz
50MHz
2x
On
On
On
On
Off
Off
133MHz
55MHz
2x
On
On
Off
On
Off
Off
150MHz
60MHz
2x
On
Off
Off
On
Off
Off
166MHz
66MHz
2x
Off
Off
Off
On
Off
Off

CPU SPEED SELECTION (IBM 6X86)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
120MHz
50MHz
2x
On
On
On
On
Off
Off
133MHz
55MHz
2x
On
On
Off
On
Off
Off
150MHz
60MHz
2x
On
Off
Off
On
Off
Off
166MHz
66MHz
2x
Off
Off
Off
On
Off
Off

CPU SPEED SELECTION (CX 6X86L)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
166MHz
66MHz
2x
Off
Off
Off
On
Off
Off

CPU SPEED SELECTION (IBM 6X86L)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
166MHz
66MHz
2x
Off
Off
Off
On
Off
Off

CPU SPEED SELECTION (CX 6X86MX)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
166MHz
60MHz
2.5x
On
Off
Off
On
On
Off
200MHz
66MHz
2.5x
Off
Off
Off
On
On
Off
233MHz
66MHz
3x
Off
Off
Off
Off
On
Off
266MHz
66MHz
3.5x
Off
Off
Off
Off
Off
Off

CPU SPEED SELECTION (IBM 6X86MX)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
166MHz
60MHz
2.5x
On
Off
Off
On
On
Off
200MHz
66MHz
2.5x
Off
Off
Off
On
On
Off
233MHz
66MHz
3x
Off
Off
Off
Off
On
Off
266MHz
66MHz
3.5x
Off
Off
Off
Off
Off
Off

CPU SPEED SELECTION (AM K5)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
75MHz
50MHz
1.5x
On
On
On
Off
Off
Off
90MHz
60MHz
1.5x
On
Off
Off
Off
Off
Off
100MHz
66MHz
1.5x
Off
Off
Off
Off
Off
Off
120MHz
60MHz
1.5x
On
Off
Off
Off
Off
Off
133MHz
66MHz
1.5x
Off
Off
Off
Off
Off
Off
166MHz
66MHz
2.5x
Off
Off
Off
On
On
Off

CPU SPEED SELECTION (AM K6)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
166MHz
66MHz
2.5x
Off
Off
Off
On
On
Off
200MHz
66MHz
3x
Off
Off
Off
Off
On
Off
233MHz
66MHz
3.5x
Off
Off
Off
Off
Off
Off
266MHz
66MHz
4x
Off
Off
Off
On
Off
On

CPU SPEED SELECTION (INTEL)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
75MHz
50MHz
1.5x
On
On
On
Off
Off
Off
90MHz
60MHz
1.5x
On
Off
Off
Off
Off
Off
100MHz
66MHz
1.5x
Off
Off
Off
Off
Off
Off
120MHz
60MHz
2x
On
Off
Off
On
Off
Off
133MHz
66MHz
2x
Off
Off
Off
On
Off
Off
150MHz
60MHz
2.5x
On
Off
Off
On
On
Off
166MHz
66MHz
2.5x
Off
Off
Off
On
On
Off
200MHz
66MHz
3x
Off
Off
Off
Off
On
Off

CPU SPEED SELECTION (INTEL MMX)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
166MHz
66MHz
2.5x
Off
Off
Off
On
On
Off
200MHz
66MHz
3x
Off
Off
Off
Off
On
Off
233MHz
66MHz
3.5x
Off
Off
Off
Off
Off
Off

CPU VOLTAGE SELECTION (SINGLE)
Voltage
SW7
SW8
SW9
SW10
SW11
SW12
2.0v
3 & 4
3 & 4
3 & 4
3 & 4
3 & 4
3 & 4
2.1v
1 & 2, 3 & 4
3 & 4
3 & 4
3 & 4
3 & 4
3 & 4
2.2v
3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
3 & 4
3 & 4
2.3v
1 & 2, 3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
3 & 4
3 & 4
2.4v
3 & 4
3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
3 & 4
2.5v
1 & 2, 3 & 4
3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
3 & 4
2.6v
3 & 4
1 & 2, 3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
3 & 4
2.7v
1 & 2, 3 & 4
1 & 2, 3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
3 & 4
2.8v
3 & 4
3 & 4
3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
2.9v
1 & 2, 3 & 4
3 & 4
3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
3.0v
3 & 4
1 & 2, 3 & 4
3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
3.1v
1 & 2, 3 & 4
1 & 2, 3 & 4
3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
3.2v
3 & 4
3 & 4
1 & 2, 3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
3.3v
3 & 4
1 & 2, 3 & 4
1 & 2, 3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
3.4v
3 & 4
1 & 2, 3 & 4
1 & 2, 3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
3.52v
1 & 2, 3 & 4
1 & 2, 3 & 4
1 & 2, 3 & 4
1 & 2, 3 & 4
3 & 4
3 & 4
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (DUAL)
Voltage
V core
SW7
SW8
SW9
Auto detect
Auto detect
2 & 3
2 & 3
2 & 3
3.3v
3.3v
3 & 4
1 & 2, 3 & 4
1 & 2, 3 & 4
3.3v
2.1v
1 & 2, 3 & 4
3 & 4
3 & 4
3.3v
3.2v
3 & 4
3 & 4
1 & 2, 3 & 4
3.3v
2.9v
1 & 2, 3 & 4
3 & 4
3 & 4
3.3v
2.8v
3 & 4
3 & 4
3 & 4
3.52v
3.52v
1 & 2, 3 & 4
1 & 2, 3 & 4
1 & 2, 3 & 4
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (DUAL, CON’T)
Voltage
V core
SW10
SW11
SW12
Auto detect
Auto detect
2 & 3
2 & 3
2 & 3
3.3v
3.3v
1 & 2, 3 & 4
3 & 4
3 & 4
3.3v
2.1v
3 & 4
3 & 4
3 & 4
3.3v
3.2v
1 & 2, 3 & 4
3 & 4
3 & 4
3.3v
2.9v
1 & 2, 3 & 4
3 & 4
3 & 4
3.3v
2.8v
1 & 2, 3 & 4
3 & 4
3 & 4
3.52v
3.52v
1 & 2, 3 & 4
3 & 4
3 & 4
Note: Pins designated should be in the closed position.

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

HOT-569 (VER. 2.0) Motherboard Settings and Configuration

Search

My Books

Discover

Device Type	Mainboard
Processor	CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/ AM K5/AM K6/Pentium
Processor Speed	75/90/100/120/133/150/166/200/233/266MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	256MB (EDO & SDRAM supported)
Maximum Video Memory	None
Cache	512KB
BIOS	Award
Dimensions	280mm x 220mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power connector	ATX	PS/2 mouse interface	J99
Floppy drive interface	CN1	Soft off power supply	JP2
Serial port 1	CN2	IR connector	JP3
Serial port 2	CN3	Chassis fan power	JP4
Parallel port	CN4	Chassis fan power	JP5
IDE interface 1	J6	EISCA cooler connector	JP6
IDE interface 2	J7	Reset switch	JP12
USB connector	J10	Green PC connector	JP15
USB connector	J11	IDE interface LED	JP22
Speaker	J12	Green PC LED	JP33
Power LED & keylock	J14	32-bit PCI slots	PC1 – PC4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	J100	Unidentified
»	Factory configured - do not alter	JP18	Unidentified
	Flash BIOS voltage select 12v	JP19	Pins 1 & 2 closed
	Flash BIOS voltage select 5v	JP19	Pins 2 & 3 closed
»	Factory configured - do not alter	JP20	Unidentified
»	CMOS memory normal operation	JP40	Pins 1 & 2 closed
	CMOS memory clear	JP40	Pins 2 & 3 closed
»	Factory configured - do not alter	JP44	Unidentified

SIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None

SIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	None
136MB	(2) 16M x 36	(2) 1M x 36
144MB	(2) 16M x 36	(2) 2M x 36
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size	Bank 2	Bank 3	Bank 4
8MB	(1) 1M x 64	None	None
16MB	(1) 2M x 64	None	None
16MB	(1) 1M x 64	(1) 1M x 64	None
24MB	(1) 2M x 64	(1) 1M x 64	None
24MB	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64
32MB	(1) 4M x 64	None	None
32MB	(1) 2M x 64	(1) 1M x 64	(1) 1M x 64
32MB	(1) 2M x 64	(1) 2M x 64	None
40MB	(1) 4M x 64	(1) 1M x 64	None
40MB	(1) 2M x 64	(1) 2M x 64	(1) 1M x 64
48MB	(1) 4M x 64	(1) 1M x 64	(1) 1M x 64
48MB	(1) 4M x 64	(1) 2M x 64	None
48MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
56MB	(1) 4M x 64	(1) 2M x 64	(1) 1M x 64
64MB	(1) 8M x 64	None	None
64MB	(1) 4M x 64	(1) 2M x 64	(1) 2M x 64
64MB	(1) 4M x 64	(1) 4M x 64	None
72MB	(1) 8M x 64	(1) 1M x 64	None
72MB	(1) 4M x 64	(1) 4M x 64	(1) 1M x 64

DIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2
80MB	(1) 8M x 64	(1) 1M x 64	(1) 1M x 64
80MB	(1) 8M x 64	(1) 2M x 64	None
80MB	(1) 4M x 64	(1) 4M x 64	(1) 2M x 64
88MB	(1) 8M x 64	(1) 2M x 64	(1) 1M x 64
96MB	(1) 8M x 64	(1) 2M x 64	(1) 2M x 64
96MB	(1) 8M x 64	(1) 4M x 64	None
96MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
104MB	(1) 8M x 64	(1) 4M x 64	(1) 1M x 64
112MB	(1) 8M x 64	(1) 4M x 64	(1) 2M x 64
128MB	(1) 16M x 64	None	None
128MB	(1) 8M x 64	(1) 4M x 64	(1) 4M x 64
128MB	(1) 8M x 64	(1) 8M x 64	None
136MB	(1) 16M x 64	(1) 1M x 64	None
136MB	(1) 8M x 64	(1) 8M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 1M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 2M x 64	None
144MB	(1) 8M x 64	(1) 8M x 64	(1) 2M x 64
152MB	(1) 16M x 64	(1) 2M x 64	(1) 1M x 64
160MB	(1) 16M x 64	(1) 2M x 64	(1) 2M x 64
160MB	(1) 16M x 64	(1) 4M x 64	None
160MB	(1) 8M x 64	(1) 8M x 64	(1) 4M x 64
168MB	(1) 16M x 64	(1) 4M x 64	(1) 1M x 64
176MB	(1) 16M x 64	(1) 4M x 64	(1) 2M x 64
192MB	(1) 16M x 64	(1) 4M x 64	(1) 4M x 64
192MB	(1) 16M x 64	(1) 8M x 64	None
192MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
200MB	(1) 16M x 64	(1) 8M x 64	(1) 1M x 64
208MB	(1) 16M x 64	(1) 8M x 64	(1) 2M x 64
224MB	(1) 16M x 64	(1) 8M x 64	(1) 4M x 64
256MB	(1) 16M x 64	(1) 8M x 64	(1) 8M x 64
Note: Board accepts SDRAM memory.

CPU SPEED SELECTION (CX 6X86)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
120MHz	50MHz	2x	On	On	On	On	Off	Off
133MHz	55MHz	2x	On	On	Off	On	Off	Off
150MHz	60MHz	2x	On	Off	Off	On	Off	Off
166MHz	66MHz	2x	Off	Off	Off	On	Off	Off

CPU SPEED SELECTION (IBM 6X86)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
120MHz	50MHz	2x	On	On	On	On	Off	Off
133MHz	55MHz	2x	On	On	Off	On	Off	Off
150MHz	60MHz	2x	On	Off	Off	On	Off	Off
166MHz	66MHz	2x	Off	Off	Off	On	Off	Off

CPU SPEED SELECTION (CX 6X86L)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
166MHz	66MHz	2x	Off	Off	Off	On	Off	Off

CPU SPEED SELECTION (IBM 6X86L)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
166MHz	66MHz	2x	Off	Off	Off	On	Off	Off

CPU SPEED SELECTION (CX 6X86MX)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
166MHz	60MHz	2.5x	On	Off	Off	On	On	Off
200MHz	66MHz	2.5x	Off	Off	Off	On	On	Off
233MHz	66MHz	3x	Off	Off	Off	Off	On	Off
266MHz	66MHz	3.5x	Off	Off	Off	Off	Off	Off

CPU SPEED SELECTION (IBM 6X86MX)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
166MHz	60MHz	2.5x	On	Off	Off	On	On	Off
200MHz	66MHz	2.5x	Off	Off	Off	On	On	Off
233MHz	66MHz	3x	Off	Off	Off	Off	On	Off
266MHz	66MHz	3.5x	Off	Off	Off	Off	Off	Off

CPU SPEED SELECTION (AM K5)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
75MHz	50MHz	1.5x	On	On	On	Off	Off	Off
90MHz	60MHz	1.5x	On	Off	Off	Off	Off	Off
100MHz	66MHz	1.5x	Off	Off	Off	Off	Off	Off
120MHz	60MHz	1.5x	On	Off	Off	Off	Off	Off
133MHz	66MHz	1.5x	Off	Off	Off	Off	Off	Off
166MHz	66MHz	2.5x	Off	Off	Off	On	On	Off

CPU SPEED SELECTION (AM K6)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
166MHz	66MHz	2.5x	Off	Off	Off	On	On	Off
200MHz	66MHz	3x	Off	Off	Off	Off	On	Off
233MHz	66MHz	3.5x	Off	Off	Off	Off	Off	Off
266MHz	66MHz	4x	Off	Off	Off	On	Off	On

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
75MHz	50MHz	1.5x	On	On	On	Off	Off	Off
90MHz	60MHz	1.5x	On	Off	Off	Off	Off	Off
100MHz	66MHz	1.5x	Off	Off	Off	Off	Off	Off
120MHz	60MHz	2x	On	Off	Off	On	Off	Off
133MHz	66MHz	2x	Off	Off	Off	On	Off	Off
150MHz	60MHz	2.5x	On	Off	Off	On	On	Off
166MHz	66MHz	2.5x	Off	Off	Off	On	On	Off
200MHz	66MHz	3x	Off	Off	Off	Off	On	Off

CPU SPEED SELECTION (INTEL MMX)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
166MHz	66MHz	2.5x	Off	Off	Off	On	On	Off
200MHz	66MHz	3x	Off	Off	Off	Off	On	Off
233MHz	66MHz	3.5x	Off	Off	Off	Off	Off	Off

CPU VOLTAGE SELECTION (SINGLE)
Voltage	SW7	SW8	SW9	SW10	SW11	SW12
2.0v	3 & 4	3 & 4	3 & 4	3 & 4	3 & 4	3 & 4
2.1v	1 & 2, 3 & 4	3 & 4	3 & 4	3 & 4	3 & 4	3 & 4
2.2v	3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4	3 & 4	3 & 4
2.3v	1 & 2, 3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4	3 & 4	3 & 4
2.4v	3 & 4	3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4	3 & 4
2.5v	1 & 2, 3 & 4	3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4	3 & 4
2.6v	3 & 4	1 & 2, 3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4	3 & 4
2.7v	1 & 2, 3 & 4	1 & 2, 3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4	3 & 4
2.8v	3 & 4	3 & 4	3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4
2.9v	1 & 2, 3 & 4	3 & 4	3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4
3.0v	3 & 4	1 & 2, 3 & 4	3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4
3.1v	1 & 2, 3 & 4	1 & 2, 3 & 4	3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4
3.2v	3 & 4	3 & 4	1 & 2, 3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4
3.3v	3 & 4	1 & 2, 3 & 4	1 & 2, 3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4
3.4v	3 & 4	1 & 2, 3 & 4	1 & 2, 3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4
3.52v	1 & 2, 3 & 4	1 & 2, 3 & 4	1 & 2, 3 & 4	1 & 2, 3 & 4	3 & 4	3 & 4
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (DUAL)
Voltage	V core	SW7	SW8	SW9
Auto detect	Auto detect	2 & 3	2 & 3	2 & 3
3.3v	3.3v	3 & 4	1 & 2, 3 & 4	1 & 2, 3 & 4
3.3v	2.1v	1 & 2, 3 & 4	3 & 4	3 & 4
3.3v	3.2v	3 & 4	3 & 4	1 & 2, 3 & 4
3.3v	2.9v	1 & 2, 3 & 4	3 & 4	3 & 4
3.3v	2.8v	3 & 4	3 & 4	3 & 4
3.52v	3.52v	1 & 2, 3 & 4	1 & 2, 3 & 4	1 & 2, 3 & 4
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (DUAL, CON’T)
Voltage	V core	SW10	SW11	SW12
Auto detect	Auto detect	2 & 3	2 & 3	2 & 3
3.3v	3.3v	1 & 2, 3 & 4	3 & 4	3 & 4
3.3v	2.1v	3 & 4	3 & 4	3 & 4
3.3v	3.2v	1 & 2, 3 & 4	3 & 4	3 & 4
3.3v	2.9v	1 & 2, 3 & 4	3 & 4	3 & 4
3.3v	2.8v	1 & 2, 3 & 4	3 & 4	3 & 4
3.52v	3.52v	1 & 2, 3 & 4	3 & 4	3 & 4
Note: Pins designated should be in the closed position.
