Doubleserial dual rs-232 serial ports IO card Settings and Configuration






Silicom connectivity solutions

Doubleserial dual rs-232 serial ports

Card Type

Serial card

Data Bus

PCMCIA Type II

I/O Options

Serial ports (2)

CONNECTIONS

Function

Label

Function

Label

Serial port 1

CN1

Serial port 2

CN2

MISCELLANEOUS TECHNICAL NOTES

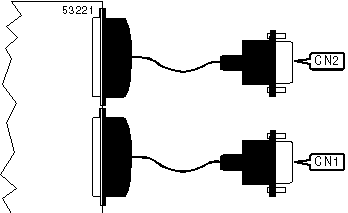

Diagram depicts the connectors used to attach the PCMCIA card to serial peripherals.
