AT-BUS ADAPTER BOARD Hard Disk/Floppy Controller Settings and Configuration

QUANTUM CORPORATION

AT-BUS ADAPTER BOARD

Data bus: 16-bit, ISA

Size: Half-length, full-height card

Hard drives supported: Two IDE (AT) Interface drives

Floppy drives supported: None

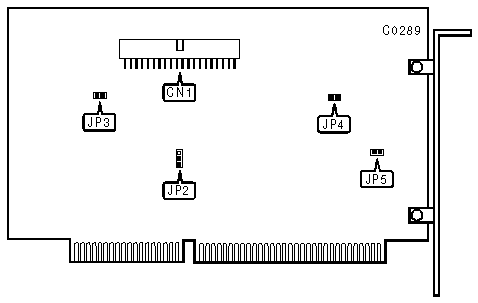

CONNECTIONS
Function
Location
40-pin IDE (AT) Interface connector
CN1

USER CONFIGURABLE SETTINGS
Function
Location
Setting
»
Interrupt gated directly to AT Bus
JP2
pins 2 & 3 closed

Interrupt issued every time drive goes busy
JP2
pins 1 & 2 closed
»
Factory configured - do not alter
JP3
open
»
Zero Wait State enabled
JP4
open

One Wait State enabled
JP4
closed
»
Hard drive port address is 1F0-1F7h
JP5
open

Hard drive port address is 170-177h
JP5
closed
