FAST!SCSI BASIC E Hard Disk/Floppy Controller Settings and Configuration
Q LOGIC CORPORATION
FAST!SCSI BASIC E
Data bus: | 16-bit ISA |
Size: | Half-length, half-height card |
Hard drive supported: | Up to seven SCSI devices |
Floppy drives supported: | N/A |
CONNECTIONS | |

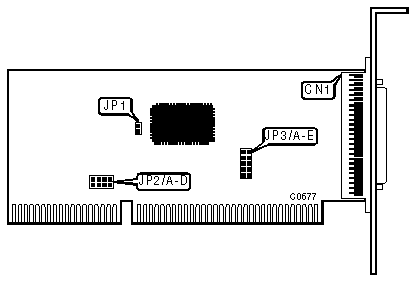

Function | Location |
50-pin SCSI connector - external | CN1 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | I/O Address - 330-33Fh | JP1 | open |
I/O Address - 230-23Fh | JP1 | closed | |
| » | Data transfer mode asynchronous | JP3/A | open |
Data transfer mode synchronous | JP3/A | closed | |
| » | SCSI ID7 | JP3/B | open |
SCSI ID6 | JP3/B | closed | |
| » | Parity - enabled | JP3/C | open |
Parity - disabled | JP3/C | closed | |
INTERRUPT SELECT | |||||||
IRQ | JP2/A | JP2/B | JP2/C | JP2/D | JP3/D | JP3/E | |
| » | IRQ11 | open | closed | open | open | open | open |
IRQ10 | closed | open | open | open | closed | open | |
IRQ12 | open | open | closed | open | closed | closed | |
IRQ15 | open | open | open | closed | open | closed | |
