T-160 (CD-AT160) Hard Disk/Floppy Controller Settings and Configuration
NEC TECHNOLOGIES, INC.
T-160 (CD-AT160)
Card Type | Hard drive controller |
Hard Drives supported | Up to 7 SCSI devices |
Floppy drives supported | None |
Data Bus | 16-bit ISA |
Card Size | Half-length, full-height |

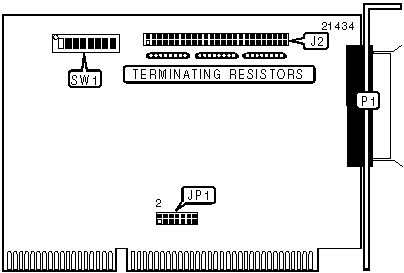

CONNECTIONS | |||
Function | Label | Function | Label |
50-pin SCSI connector - internal | J2 | 25-pin SCSI connector - external | P1 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Factory configured - do not alter | SW1/7 | Unidentified |
| » | Factory configured - do not alter | SW1/8 | Unidentified |
ROM ADDRESS SELECTION | ||||
Setting | SW1/4 | SW1/5 | SW1/6 | |
C8000h | Off | Off | On | |
CA000h | Off | On | Off | |
CE000h | Off | On | On | |
D0000h | On | Off | Off | |
D4000h | On | Off | On | |
D8000h | On | On | Off | |
DC000h | On | On | On | |
| » | Disabled | Off | Off | Off |
I/O ADDRESS SELECTION | ||||
Setting | SW1/1 | SW1/2 | SW1/3 | |
230h | On | On | On | |
240h | On | On | Off | |
250h | On | Off | On | |
260h | On | Off | Off | |
330h | Off | On | On | |
340h | Off | On | Off | |
350h | Off | Off | On | |
| » | 360h | Off | Off | Off |
INTERRUPT SELECTION | |||||||
Setting | JP1/ pins 1 & 2 | JP1/ pins 3 & 4 | JP1/ pins 5 & 6 | JP1/ pins 7 & 8 | JP1/ pins 9 & 10 | JP1/ pins 11 & 12 | JP1/ pins 13 & 14 |
IRQ3 | Closed | Open | Open | Open | Open | Open | Open |
IRQ5 | Open | Closed | Open | Open | Open | Open | Open |
IRQ7 | Open | Open | Closed | Open | Open | Open | Open |
IRQ10 | Open | Open | Open | Closed | Open | Open | Open |
IRQ12 | Open | Open | Open | Open | Closed | Open | Open |
IRQ14 | Open | Open | Open | Open | Open | Closed | Open |
IRQ15 | Open | Open | Open | Open | Open | Open | Closed |
Disabled | Open | Open | Open | Open | Open | Open | Open |
