T-130B (CD-XT003) Hard Disk/Floppy Controller Settings and Configuration

Card Type	Hard drive controller
Hard Drives supported	Up to 7 SCSI devices
Floppy drives supported	None
Data Bus	8-bit ISA
Card Size	Half-length, full-height

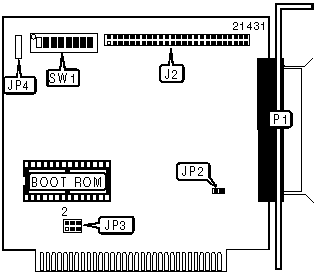

CONNECTIONS
Function	Label	Function	Label
50-pin SCSI connector - internal	J2	25-pin SCSI connector - external	P1
Drive active LED	JP4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Zero wait state enabled	JP2	Closed
	Zero wait state disabled	JP2	Open
»	Boot ROM enabled	SW1/6	Off
	Boot ROM disabled	SW1/6	On
»	Factory configured - do not alter	SW1/7	Off
»	Factory configured - do not alter	SW1/8	Off

BOOT ROM ADDRESS SELECTION
Setting	SW1/3	SW1/4	SW1/5
CA000h	Off	Off	On
CE000h	Off	On	Off
DA000h	On	Off	Off
DE000h	On	Off	On
Note:If no EPROM chip installed in the boot ROM socket, the above switches should be in the "off" position.

I/O ADDRESS SELECTION
Setting		SW1/1	SW1/2
	240h	On	On
	250h	On	Off
	340h	Off	On
»	350h	Off	Off

INTERRUPT SELECTION
Setting	JP3/pins 1 & 2	JP3/pins 3 & 4	JP3/pins 5 & 6
IRQ3	Closed	Open	Open
IRQ5	Open	Closed	Open
IRQ7	Open	Open	Closed
Disabled	Pins 2 & 4 closed
