DC376 Hard Disk/Floppy Controller Settings and Configuration
MYLEX CORPORATION
DC376
Data bus: 32 bit, Mylex AT/32 system board only
Size: Full-length, full-height card
Hard drives supported: Up to seven SCSI devices
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
Maximum heads/cyl.: 16 heads and 2048 cylinders

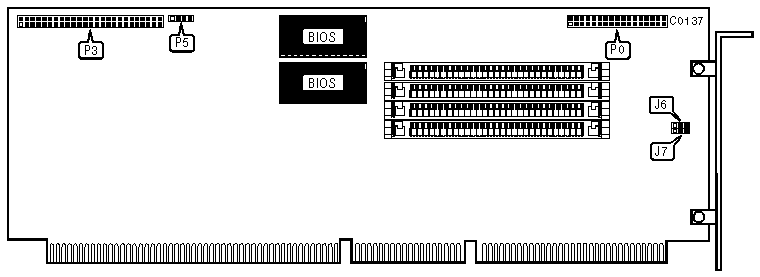

CONNECTIONS | |
Function | Location |
34-pin data cable connector-floppy drive | P0 |
50-pin SCSI connector-internal | P3 |
4-pin connector-drive active LED | P5 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | Single floppy drive supported | J6 | pins 2 & 3 closed |
Dual-speed floppy drive supported | J6 | pins 1 & 2 closed | |
| » | 187ns write precompenstaion | J7 | pins 1 & 2 closed |
125ns write precompensation | J7 | pins 2 & 3 closed | |
DRAM CONFIGURATION | |
Size | DRAM |
1MB | (4) 256K x 9 |
4MB | (4) 1MB x 9 |
MISCELLANEOUS TECHNICAL NOTES |
This board was designed for use with the Mylex MXA386 system board. Currently, no other system boards support this 32-bit bus. |
