DAC960 Hard Disk/Floppy Controller Settings and Configuration
MYLEX CORPORATION
DAC960
Data bus: | 32-bit, EISA |
Size: | Three/quarter-length, full-height card |
Hard drive supported: | Up to seven SCSI devices |
Floppy drives supported: | None |

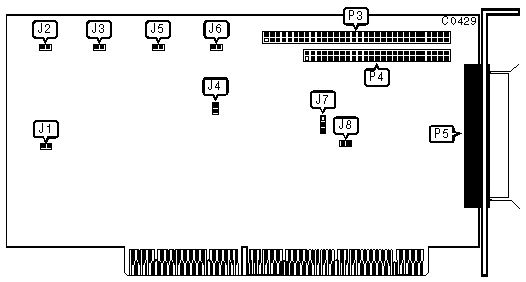

CONNECTIONS | |
Function | Location |
2-pin connector-Cache Write Pending LED | J2 |
2-pin connector-EISA active LED | J3 |
2-pin connector-SCSI active LED | J5 |
68-pin SCSI connector - internal | P3 |
50-pin SCSI connector - internal | P4 |
50-pin high-density SCSI II connector - external | P5 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | SCSI terminators enabled | J8 | closed |
| SCSI terminators disabled | J8 | open | |
MISCELLANEOUS TECHNICAL NOTES |
Jumpers J1, J4, and J6 are factory configured to open. Jumper J7 is factory configured to pins 2 & 3 closed - do not alter these settings. |
