KP 3000 Hard Disk/Floppy Controller Settings and Configuration
MORSE TECHNOLOGIES, INC.
KP 3000
Data bus: 16-bit; ISA
Size: Half-length, full-height card
Hard drives supported: Two MFM ST506/412 drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
Maximum heads/cyl.: 16 heads and 2048 cylinders

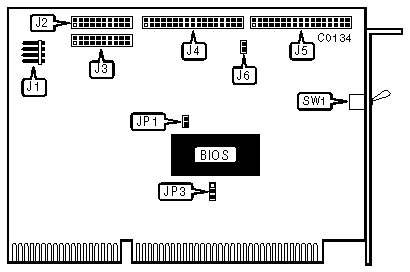

CONNECTIONS | |
Functions | Location |
4-pin connector-drive active LED | J1 |
20-pin data cable connector-drive 0 | J2 |
20-pin data cable connector-drive 1 | J3 |
34-pin control cable connector-hard drive | J4 |
34-pin data cable connector-floppy drive | J5 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | SW1 enabled | J6 | closed |
SW1 disabled | J6 | open | |
| » | Zero wait state disabled | JP1 | closed |
Zero wait state enabled | JP1 | open | |
| » | Hard drive port address is 1F0-1F7h | JP3 | pins 1 & 2 closed |
Hard drive port address is 170-177h | JP3 | pins 2 & 3 closed | |
| » | Floppy drive assignment normal | SW1 | down |
Floppy drive assignment reversed | SW1 | up | |
