DTC3150CD (400118-89XX) Hard Disk/Floppy Controller Settings and Configuration

Chipset	Data Technology Corporation
Data Bus	8-bit ISA
Card Size	Half height, one-third length
Hard Drives Supported	Up to 7 SCSI devices
Floppy Drives Supported	None

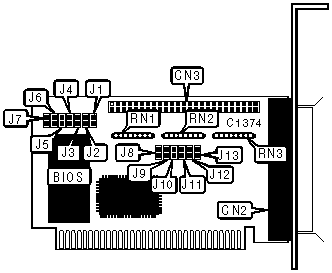

CONNECTIONS
Function	Label	Function	Label
50-pin SCSI connector - external	CN2	50-pin SCSI connector - internal	CN3

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	SCSI parity enabled	J11	Closed
	SCSI parity disabled	J11	Open
»	Factory configured - do not alter	RN1	Unidentified
»	Factory configured - do not alter	RN2	Unidentified
»	Factory configured - do not alter	RN3	Unidentified

INTERRUPT SELECTION
Setting		J4	J5	J6	J7	J12	J13
	IRQ4	Closed	Open	Open	Open	Closed	Closed
»	IRQ5	Open	Closed	Open	Open	Closed	Open
	IRQ6	Open	Open	Closed	Open	Open	Closed
	IRQ7	Open	Open	Open	Closed	Open	Open
	Disabled	Open	Open	Open	Open	Open	Open

BIOS ADDRESS SELECTION
Setting		J2	J3
	C800h	Closed	Open
	CC00h	Closed	Closed
»	D800h	Open	Open
	DC00h	Open	Closed

SCSI ADDRESS SELECTION
Setting		J8	J9	J10
	0	Closed	Closed	Closed
	1	Closed	Closed	Open
	2	Closed	Open	Closed
	3	Closed	Open	Open
	4	Open	Closed	Closed
	5	Open	Closed	Open
	6	Open	Open	Closed
»	7	Open	Open	Open

SCSI TERMINATION

The method for selecting SCSI termination is unidentified.
