DTC-3510A (400577-89A) Hard Disk/Floppy Controller Settings and Configuration
DATA TECHNOLOGY CORPORATION

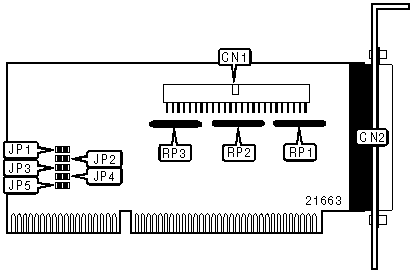

DTC-3510A (400577-89A)
Card Type | Hard drive controller card |
Hard Drives supported | Up to 7 SCSI-2 Fast devices |
Floppy drives supported | None |
Data Bus | 16-bit ISA |
Card Size | Half-length, half-height card |
CONNECTIONS | |||
Function | Location | Function | Location |
50-pin SCSI connector - internal | CN1 | Terminator | RP2 |
50-pin SCSI connector - external | CN2 | Terminator | RP3 |
Terminator | RP1 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Port address is 340h | JP5 | Closed |
| Port address is 140h | JP5 | Open | |
INTERRUPT SELECTION | ||||
IRQ | JP1 | JP2 | JP3 | JP4 |
IRQ9 | Open | Open | Open | Closed |
IRQ10 | Open | Open | Closed | Open |
IRQ11 | Open | Closed | Open | Open |
IRQ12 | Closed | Open | Open | Open |
