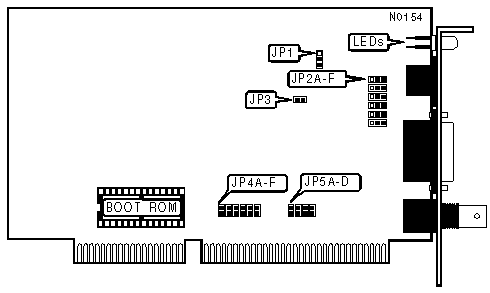

Aquila AQ-E16-CX/TP Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star Linear Bus
Wiring Type	Unshielded twisted pair (AQ-E16-TP) AUI Transceiver via DB-15 port RG-58 A/U 50ohm coaxial (AQ-E16-CX)
Boot ROM	Available

LINK INTEGRITY TEST
Setting	JP31
Enabled	Pins 1 & 2 Closed
Disabled	Pins 2 & 3 Closed
Note:Link Integrity is only used with 10Base-T wiring. When using other than 10BaseT, the test should be disabled.

CABLE TYPE
Type	JP2A - JP2F	JP3
RG-58A/U 50ohm coaxial	Pins 2 & 3 closed	Open
Unshielded twisted pair	Pins 2 & 3 closed	Closed
AUI transceiver via DB-15 port	Pins 1 & 2 closed	N/A

BOOT ROM
Setting		JP4A
»	Enabled	Closed
	Disabled	Open

BOOT ROM ADDRESS
Address		JP4C	JP4D
»	C8000h	Open	Open
	CC000h	Closed	Open
	D0000h	Open	Closed
	D4000h	Closed	Closed

I/O BASE ADDRESS
Address		JP4E	JP4F
»	300h	Open	Open
	320h	Closed	Open
	340h	Open	Closed
	360h	Closed	Closed

INTERRUPT REQUEST
IRQ		JP5A	JP5B	JP5C	JP5D
	2/9	Closed	Open	Open	Open
»	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
	5	Open	Open	Open	Closed

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP4B	Open

DIAGNOSTIC LED(S)
Color	Status	Condition
Green	On	Twisted pair network connection is good
Green	Off	Twisted pair network connection is broken
Red	On	Collision detected on network
Red	Off	Normal operation
