SDT-2000, SDT-4000 Tape drive card Settings and Configuration

SONY CORPORATION

SDT-2000, SDT-4000

Device Type
Tape Drive
Interface
SCSI-2
Format
DDS, DDS-DC, DCLZ
Sustained Transfer Rate
183 KBPS (SDT-2000)
183-366 KBPS (SDT-4000)
Size
3.5 in. half height
View
Top

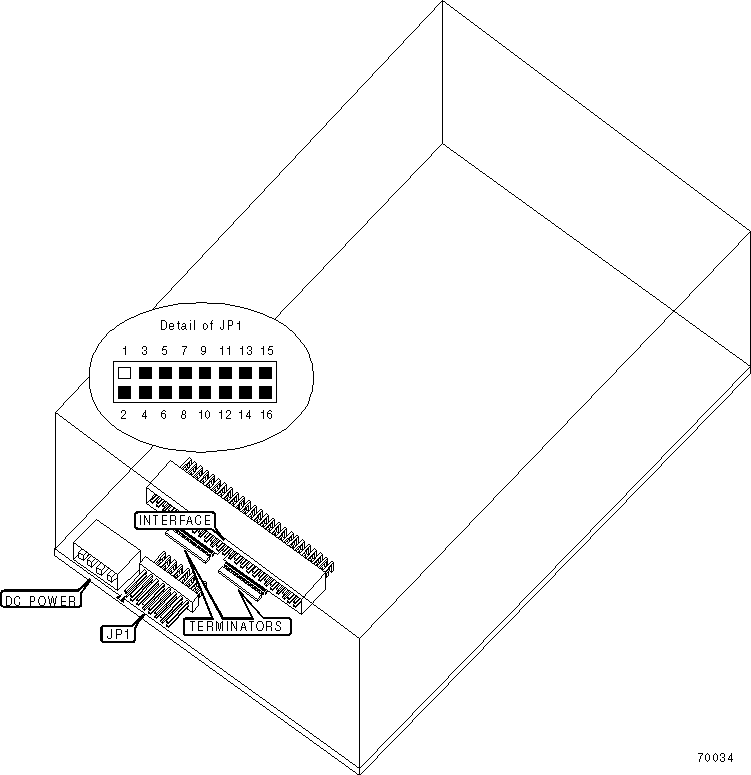

USER CONFIGURABLE SETTINGS
Setting
Label
Position
»
Data compression disabled
JP1/Pins 7 & 8
Closed

Data compression enabled
JP1/Pins 7 & 8
Open
»
Parity enabled
JP1/Pins 9 & 10
Closed

Parity disabled
JP1/Pins 9 & 10
Open
»
Factory configured - do not alter.
JP1/Pins 11 & 12
Unidentified
»
Terminator enabled
JP1/Pins 13 & 14
Closed

Terminator disabled
JP1/Pins 13 & 14
Open

DRIVE SELECT ID
Drive ID
JP1/Pins 1 & 2
JP1/Pins 3 & 4
JP1/Pins 5 & 6
0
Open
Open
Open
1
Open
Open
Closed
2
Open
Closed
Open
3
Open
Closed
Closed
4
Closed
Open
Open
5
Closed
Open
Closed
6
Closed
Closed
Open
7
Closed
Closed
Closed

TERMINATION POWER SELECTION
Setting
JP1/Pins 15 & 16
»
TERMPWR supplied by drive
Closed

TERMPWR supplied by SCSI interface to drive
Open

MANUFACTURERS RECOMMENED MEDIA
Drive
Tape
Capacity Without Compression
Capacity With Compression
SDT-2000
DDS 90 meter
2.0 GB
Unidentified
SDT-4000
DDS (DCLZ) 90 meter
2.0-4.0 GB
4.0-8.0 GB

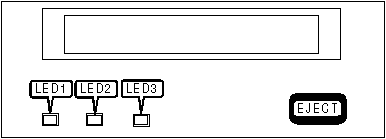

DIAGNOSTIC LED(S)
LEDs
Functions
LED1
LED2
LED3
Activity
Cartridge
Other
Off
Off
Off
None
None
None
On
Off
Off
SCSI
None
None
Flashing 1
Flashing 1
Off
Loading/Unloading
None
Flashing 1
Flashing 1
On
Loading/Unloading
Write Protected
Off
On
Flashing 1
None
Loaded
Cleaning Tape at EOM
Off
On
Off
None
Loaded
None
On
On
Off
SCSI
Loaded
None
Flashing 1
On
Off
SCSI/Drive
Loaded
None
Unidentified
On
On
X
Loaded
Write Protected
Unidentified
Flashing 2
Unidentified
X
Loaded
Error Rate Warning
Flashing 2
Unidentified
Unidentified
X
X
Humidity Warning
Unidentified
Unidentified
Flashing 2
X
X
Cleaning Request
Unidentified
Unidentified
Flashing 3
X
X
Drive Mechanism Failure
Unidentified
Unidentified
Flashing 4
X
X
Drive Circuitry Failure
Flashing 3
Unidentified
Unidentified
X
X
Waiting for Reset
Unidentified
Flashing 3
Unidentified
X
X
Waiting for Eject
Note: 1 LED flashes at 0.25 seconds on/0.25 seconds off. 2 LED flashes at 3.5 seconds on/0.25 seconds off. 3 LED emits a continuous pulse at 0.25 seconds on. 4 LED emits a continuous double pulse at 0.25 seconds on. ‘X’ means not applicable.
