JAZZ 16 Sound card Settings and Configuration

Card Type

Sound Card

Chip Set

Yamaha

I/O Options

Line in, microphone in, speaker/headphone out, game/MIDI port, CD-ROM connector, Audio-in-CD-ROM

Data Bus

16-bit ISA

Card Size

Full-length, full-height card

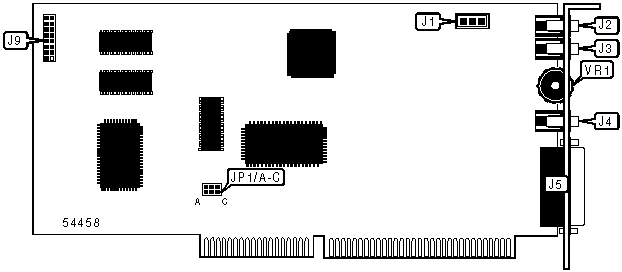

CONNECTIONS

Function

Label

Function

Label

Audio-in-CD-ROM

J1

Game/M|DI port

J5

Line in

J2

CD-ROM connector

J9

Microphone in

J3

Volume control

VR1

Speaker out

J4

INTERRUPT SELECTION

IRQ

JP1/A

JP1/B

JP1/C

11

Closed

Open

Open

»12

Open

Closed

Open

15

Open

Open

Closed
