FANCARD-SOUND-3D Sound card Settings and Configuration
T. S. MICROTECH, INC.
FANCARD-SOUND-3D
Card Type | Sound card |
Chipset | ESS 1868/936 |
I/O Options | DC power in, DC power out, front panel header, CD-ROM interface, CD-ROM audio in (3), game/MIDI port, audio line in, microphone in, speaker out, wavetable header |
Data Bus | 16-bit ISA |

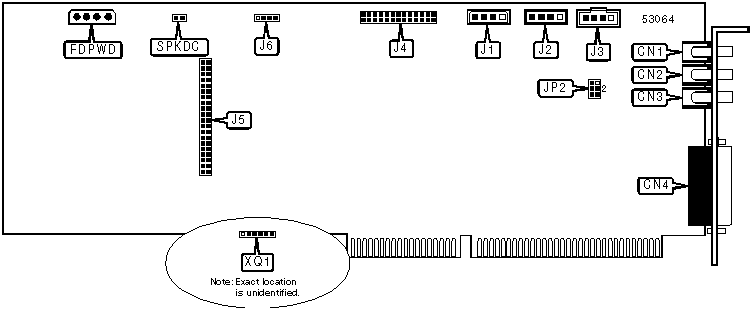

CONNECTIONS | |||
Function | Label | Function | Label |
Microphone in | CN1 | CD-ROM audio in - Mitsumi | J2 |
Audio line in | CN2 | CD-ROM audio in - Sony | J3 |
Speaker out | CN3 | Wavetable header | J4 |
Game/MIDI port | CN4 | CD-ROM ATAPI interface | J5 |
DC power in | FDPWD | Front panel header (see pinout below) | J6 |
CD-ROM audio in - Panasonic | J1 | DC power out | SPKDC |
J6 PINOUT | |||
Function | Pin | Function | Pin |
Common connection | 1 | Speaker on/off trigger | 3 |
Volume down trigger | 2 | Volume up trigger | 4 |
USER CONFIGURABLE SETTINGS | ||
Setting | Label | Position |
Internal amplifier enabled | JP2 | Pins 1 & 2, 4 & 5 closed |
Internal amplifier disabled | JP2 | Pins 2 & 3, 5 & 6 closed |
DC POWER OUT LEVEL SELECTION | |
Setting | XQ1 |
5V DC out | Pins 1 & 2 closed |
6V DC out | Pins 3 & 4 closed |
9V DC out | Pins 5 & 6 closed |
12V DC out | Open |
