DDS-100 Sound card Settings and Configuration

QUATECH, INC.

DDS-100

Card Type
Waveform Synthesizer
Chipset/Controller
Unidentified
I/O Options
Trigger/gate signal inputs
Maximum DRAM
N/A

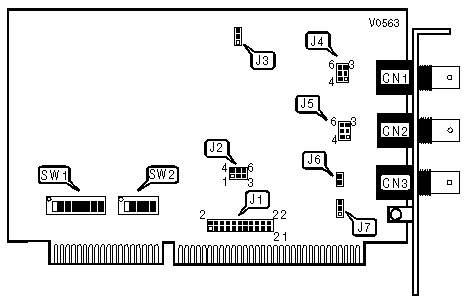

CONNECTIONS
Purpose
Location
Purpose
Location
Sine wave output
CN1
Trigger/gate input
CN3
TTL square wave/time mark output
CN2

INTERRUPT SELECT
IRQ
J1
»
IRQ5
Pins 7 & 8 closed

IRQ2
Pins 1 & 2 closed

IRQ3
Pins 3 & 4 closed

IRQ4
Pins 5 & 6 closed

IRQ6
Pins 9 & 10 closed

IRQ7
Pins 11 & 12 closed

IRQ10
Pins 13 & 14 closed

IRQ11
Pins 15 & 16 closed

IRQ12
Pins 17 & 18 closed

IRQ14
Pins 19 & 20 closed

IRQ15
Pins 21 & 22 closed

Disabled
All pins open

8254 CLOCK CONFIGURATION
Setting
J2
10Mhz timer
Pins 1 & 2, 4 & 5 closed
Cycle counter
Pins 2 & 3, 5 & 6 closed

8254 CLOCK OUTPUT SPEED
Output
J7
Direct
Pins 1 & 2 closed
Output/2
Pins 2 & 3 closed
Note: Clock input can not exceed 10Mhz.

SINE WAVE OUTPUT AMPLITUDE
Setting
J3
+ 5V
Pins 1 & 2 closed
+ 1V
Pins 2 & 3 closed

SINE WAVE OUTPUT IMPEDANCE
Output
J4
50ohm
Pins 1 & 2, 4 & 5 closed
75ohm
Pins 1 & 2, 5 & 6 closed
100ohm
Pins 1 & 2 closed
Unfiltered
Pins 2 & 3, 5 & 6 closed

CN2 OUTPUT OPTIONS
Setting
J5
TTL output
Pins 3 & 6 closed
Clock output
Pins 2 & 5 closed
Time mark output
Pins 1 & 4 closed

CN3 INPUT OPTIONS
Setting
J6
External trigger input
closed
Gate signal input
open

I/O ADDRESS CONFIGURATION
Address
SW1
SW2
»
300h
1, 2, 3, 4, 5 & 6 on
1, 2, 3, 4 & 5 on

240h
1, 2, 3, 4, 5, 6 & 8 on
1, 3, 4 & 5 on

6FC8h
1 & 4 on
3 & 4 on
Note: The address range for the DDS-100 is from 0 to FFFFh. The switches are a binary representation of the addresses. When a switch is off, the corresponding bit is set to 1 and has the following decimal value: SW1/1=8, SW1/2=4, SW1/3=2, SW1/4=1, SW1/5=8, SW1/6=4, SW1/7=2, SW1/8=1, SW2/1=8, SW2/2=4, SW2/3=2, SW2/4=1, SW2/5=8. The DDS-100 requires eight consecutive address locations.
