PRO AUDIO SPECTRUM 16 REV.D (650-0097-05) Sound card Settings and Configuration
MEDIA VISION TECHNOLOGY, INC.
PRO AUDIO SPECTRUM 16 REV.D (650-0097-05)
Card Type | Sound card |
Chip Set | Unidentified |
Maximum Onboard Memory | Unidentified |
I/O Options | Game/MIDI port, CD-ROM audio in , SCSI interface, microphone in, stereo line in, stereo line out |
Data Bus | 16-bit ISA |

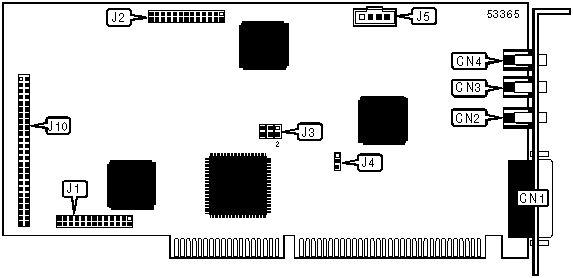

CONNECTIONS | |||
Function | Label | Function | Label |
Game/MIDI port | CN1 | Unidentified | J1 |
Microphone in | CN2 | Unidentified | J2 |
Stereo line out | CN3 | Audio in - CD-ROM | J5 |
Stereo line in | CN4 | 50-pin SCSI connector | J10 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | DMA sharing - disabled | J4 | Pins 2 & 3 closed |
DMA sharing - enabled | J4 | Pins 1 & 2 closed | |
BOARD ID SELECTION | ||||
Setting | J3/pins 1 & 2 | J3/pins 3 & 4 | J3/pins 5 & 6 | |
| » | 0 | Open | Open | Open |
1 | Closed | Open | Open | |
2 | Open | Closed | Open | |
3 | Closed | Closed | Open | |
4 | Open | Open | Closed | |
Note: When ID 4 is selected, the base I/O address is forced to 388h. For all other ID’s the software scans for available settings. Refer to the manufacturer’s documentation for possible settings. | ||||
