FUSION CD16 S/E LMSI (650-0042-01) Sound card Settings and Configuration

Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Game/MIDI port, audio in (2), CD-interface, microphone in, stereo line in, stereo line out, LMSI connector, PC speaker connector
Data Bus	16-bit ISA

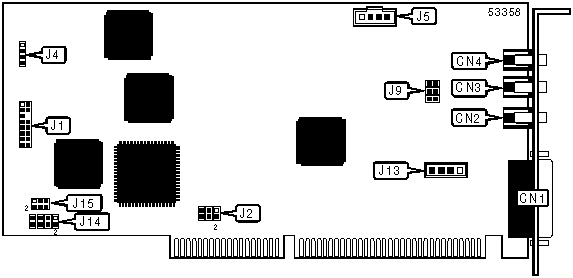

CONNECTIONS
Function	Label	Function	Label
Game/MIDI port	CN1	LMSI connector	J1
Microphone in	CN2	PC speaker connector	J4
Stereo line out	CN3	Audio in - CD-ROM	J5
Stereo line in	CN4	Aux. Audio in - CD-ROM	J13

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	J9	Unidentified

CD-ROM I/O ADDRESS SELECTION
Setting		J15
	300	Pins 3 & 5, 4 & 6 closed
	310	Pins 3 & 5, 2 & 4 closed
	330	Pins 1 & 3, 4 & 6 closed
»	340	Pins 1 & 3, 2 & 4 closed

BOARD ID SELECTION
Setting		J2/pins 1 & 2	J2/pins 3 & 4	J2/pins 5 & 6
»	0	Open	Open	Open
	1	Closed	Open	Open
	2	Open	Closed	Open
	3	Closed	Closed	Open
	4	Open	Open	Closed
Note: When ID 4 is selected, the base I/O address is forced to 388h. For all other ID’s the software scans for available settings. Refer to the manufacturer’s documentation for possible settings.

CD-ROM INTERRUPT SELECTION
Setting		J14/pins 1 & 2	J14/pins 3 & 4	J14/pins 5 & 6	J14/pins 7 & 8
»	IRQ3	Closed	Open	Open	Open
	IRQ4	Open	Closed	Open	Open
	IRQ5	Open	Open	Closed	Open
	IRQ6	Open	Open	Open	Closed
