ENSONIQ AUDIO PCI Sound card Settings and Configuration

Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Game/MIDI port, line out, line in, microphone in, Audio in – CD-ROM, TV tuner connector, modem/TAD connector
Data Bus	32-bit PCI
Card Size	Half-length, full-height card

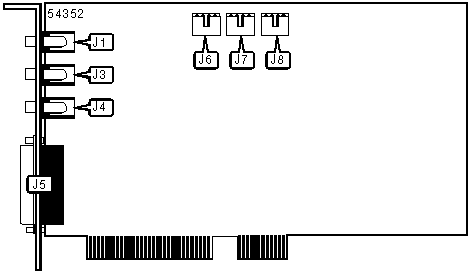

CONNECTIONS
Function	Label	Function	Label
Line out	J1	Audio in - CD-ROM	J6
Line in	J3	TV tuner connector	J7
Microphone in	J4	Modem/TAD connector	J8
Game/MIDI port	J5
