RADIOTRACK Sound card Settings and Configuration
AIMS LAB, INC.
RADIOTRACK
Card Type | Sound card |
Chip Set | Unidentified |
Maximum Onboard Memory | Unidentified |
I/O Options | Speaker out, antenna in |
Data Bus | 8-bit ISA |

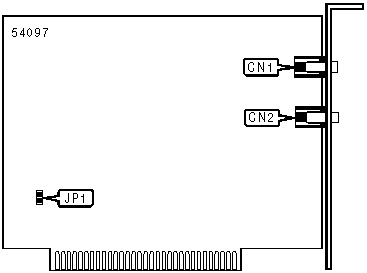

CONNECTIONS | |||
Function | Label | Function | Label |
Antenna in | CN1 | Speaker out | CN2 |
BASE I/O ADDRESS SELECTION | ||
Setting | JP1 | |
| » | 30Ch-30Fh | Open |
20Ch-20Fh | Closed | |
