LASERWAVE FUTURA 16 Sound card Settings and Configuration

ACS COMPUTER GROUP

LASERWAVE FUTURA 16

Card Type
Sound card
Chipset Controller
Unidentified
I/O Options
CD-ROM audio (2), CD-ROM interface (3), daughter board interface, game/MIDI port, line in, line out, microphone in, speaker out, wavetable connector
Maximum DRAM
N/A

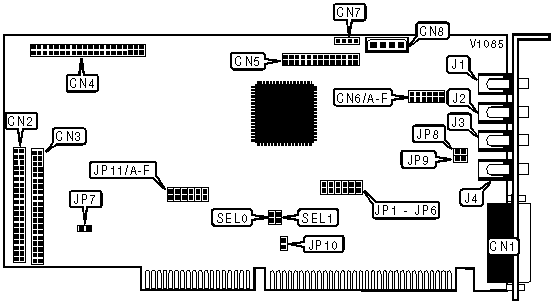

CONNECTIONS
Purpose
Location
Purpose
Location
Game/MIDI port
CN1
Sony CD - audio in
CN7
Sony CD-ROM interface (SCSI extension interface)
CN2
Panasonic CD - audio in
CN8
Mitsumi CD-ROM interface
CN3
Speaker out
J1
Panasonic CD-ROM interface
CN4
Line out
J2
Wavetable connector
CN5
Line in
J3
Daughter board interface (3D space processor)
CN6
Mic in
J4

MICROPHONE SELECTION
Setting
JP8
JP9
»
All microphone/Electric condenser active
Closed
Closed

Dynamic microphone active only
Open
Open

WINDOWS SOUND SYSTEM MODE I/O PORT ADDRESS SELECTION
Address
SEL0
SEL1
»
530h
Closed
Closed

604h
Open
Closed

E80h
Closed
Open

F40h
Open
Open

GAME PORT CONFIGURATION
Setting
JP11/A
»
Enabled
Open

Disabled
Closed

SOUND BLASTER PRO I/O PORT ADDRESS SELECTION
Address
JP11/B
JP11/C
»
220h
Open
Closed

240h
Closed
Open

260h
Open
Open

Disabled
Closed
Closed

MPU-401 MIDI PORT CONFIGURATION
Setting
JP11/D
»
Enabled
Open

Disabled
Closed

MPU-401 MIDI PORT I/O ADDRESS SELECTION
Address
JP11/E
»
330h - 331h
Open

320h - 321h
Closed

GAME PORT I/O ADDRESS SELECTION
Address
JP11/F
»
201h
Open

200h - 207h
Closed

CD-ROM SELECTION
Setting
JP7
»
Panasonic AT-bus
Closed

Sony, Mitsumi, or SCSI bus
Open

CD-ROM I/O PORT ADDRESS SELECTION
Address
JP10
»
340h
Open

320h
Closed

SCSI CD-ROM INTERRUPT SELECTION
IRQ
JP4
JP5
JP6
»
Disabled
Open
Open
Open

5
Open
Open
Closed

12
Open
Closed
Open

15
Closed
Open
Open

MPU-401 MIDI PORT INTERRUPT SELECTION
IRQ
JP1
JP2
JP3
»
9
Closed
Open
Open

5
Open
Open
Closed

7
Open
Closed
Open

Disabled
Open
Open
Open

3D SPACE PROCESSOR INTERFACE CONFIGURATION
Setting
CN6/A
CN6/B
CN6/C
CN6/D
CN6/E
CN6/F
»
Not attached
Closed
Closed
Open
Closed
Closed
Open

Attached
Open
Open
Open
Open
Open
Open
Note: If daughter board is not attached add jumpers to the interface so sound board can operate. If daughter board is attached remove all jumpers from interface before connecting.
