NETWAVE ACCESS POINT FOR ETHERNET Network Card Settings and Configuration

NIC Type	Proprietary wireless
Chip Set	Unidentified
Maximum Onboard Memory	512KB SRAM/256K flash RAM
Data Bus	PCMCIA Type II
Network Transfer Rate	1Mbps
Topology	Star/Peer-to-peer
Wiring Type	N/A
Boot ROM	Not available

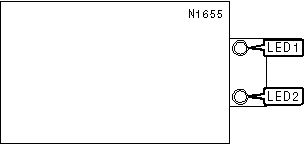

DIAGNOSTIC LED(S)
LED	Color	Status	Installation	Condition
LED1	Green	On	Computer	Radio connection to Access Point
LED1	Green	On	Access Point	Radio connection to at least one computer
LED1	Green	Off	Computer	No radio connection to Access Point
LED1	Green	Off	Access Point	No radio connection to a computer
LED1	Green	Blinking	Computer	Radio connection directly to another computer
LED2	Amber	Blinking	Either	Network is transmitting or receiving
LED2	Amber	Off	Either	Network is not transmitting or receiving

MISCELLANEOUS TECHNICAL NOTES

This card can be installed into either a computer’s PCMCIA slot or the PCMCIA slot on a Xircom Access Point module.
