CE3-100BTX Network Card Settings and Configuration
XIRCOM, INC.
CE3-100BTX
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 10/100Mbps |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Data Bus | PCMCIA Type II |

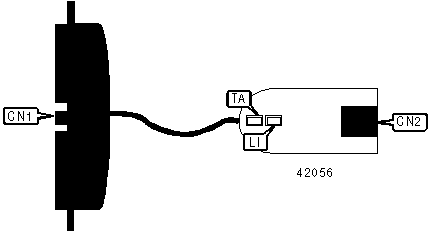

CONNECTIONS | |||
Function | Label | Function | Label |
68-pin connector | CN1 | RJ-45 unshielded twisted pair | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
TA | Yellow | On | Data is being transmitted/received |
TA | Yellow | Off | Data is not being transmitted/received |
LI | Green | On | 10Base-T UTP link is good |
LI | Green | Off | 10Base-T UTP link is broken |
LI | Orange | On | 100Base-TX UTP link is good |
LI | Orange | Off | 100Base-TX UTP link is broken |
