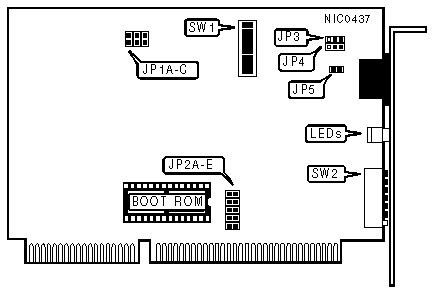

RA232 Network Card Settings and Configuration

XINETRON, INC.

RA232

NIC Type
ARCnet
Transfer Rate
2.5Mbps
Data Bus
16-bit ISA
Topology
Linear Bus
Wiring Type
Unshielded twisted pair
Boot ROM
Available

NODE ADDRESS
Node
SW2/1
SW2/2
SW2/3
SW2/4
SW2/5
SW2/6
SW2/7
SW2/8
0
-
-
-
-
-
-
-
-
1
On
On
On
On
On
On
On
Off
2
On
On
On
On
On
On
Off
On
3
On
On
On
On
On
On
Off
Off
4
On
On
On
On
On
Off
On
On
251
Off
Off
Off
Off
Off
On
Off
Off
252
Off
Off
Off
Off
Off
Off
On
On
253
Off
Off
Off
Off
Off
Off
On
Off
254
Off
Off
Off
Off
Off
Off
Off
On
255
Off
Off
Off
Off
Off
Off
Off
Off
Note: Node address 0 is used for messaging between nodes and must not be used.
A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 8 is the Least Significant Bit and switch 1 is the Most Significant Bit. The switches have the following decimal values: switch 1=128, 2=64, 3=32, 4=16, 5=8, 6=4, 7=2, 8=1. Turn off the switches and add the values of the off switches to obtain the correct node address. (On=0, Off=1)

COMPATIBILITY MODE
Setting
JP1A
»
Disabled
Open

Enabled
Closed
Note:Some systems use non-standard timing. This option attempts to make those systems work with this card by extending the I/O bus cycle. If your system does not work with this card set this option to enabled (JP1 closed).

WAIT STATE
Setting
JP1B
»
0 wait states
Open

1 wait state
Closed

BOOT ROM
Setting
JP1C
»
Disabled
Open

Enabled
Closed

INTERRUPT REQUEST
IRQ
JP2A
JP2B
JP2C
JP2D
JP2E
»
2/9
Closed
Open
Open
Open
Open

3
Open
Closed
Open
Open
Open

4
Open
Open
Closed
Open
Open

5
Open
Open
Open
Closed
Open

7
Open
Open
Open
Open
Closed

TWISTED PAIR SELECT
Setting
JP3
JP4
»
Inner pair
Pins 2 & 3 closed
Pins 2 & 3 closed

Outer pair
Pins 1 & 2 closed
Pins 1 & 2 closed
Note:If using the same wires for your phone system, the phone system must use one pair and the network must use the other pair.

ONBOARD TERMINATOR
Setting
JP5
»
Disabled
Open

Enabled
Closed
Note:If the card is on either end of a linear bus network segment, the onboard terminator may be used instead of using an external terminator.

I/O BASE ADDRESS
Address
SW1/1
SW1/2
SW1/3

260 - 26Fh
On
On
On

290 - 29Fh
On
On
Off
»
2E0 - 2EFh
On
Off
On

2F0 - 2FFh
On
Off
Off

300 - 30Fh
Off
On
On

350 - 25Fh
Off
On
Off

380 - 38Fh
Off
Off
On

3E0 - 3EFh
Off
Off
Off

BUFFER ADDRESS & BOOT ROM ADDRESS
Buffer Address
Boot ROM Address
SW1/4
SW1/5
SW1/6
SW1/7
SW1/8
C0000 - C07FFh
C2000 - C3FFFh
On
On
On
On
On
C0800 - C0FFFh
C2000 - C3FFFh
On
On
On
On
Off
C1000 - C17FFh
C2000 - C3FFFh
On
On
On
Off
On
C1800 - C1FFFh
C2000 - C3FFFh
On
On
On
Off
Off
C4000 - C47FFh
C6000 - C7FFFh
On
On
Off
On
On
C4800 - C4FFFh
C6000 - C7FFFh
On
On
Off
On
Off
C5000 - C57FFh
C6000 - C7FFFh
On
On
Off
Off
On
C5800 - C5FFFh
C6000 - C7FFFh
On
On
Off
Off
Off
CC000 - CC7FFh
CE000 - CFFFFh
On
Off
On
On
On
CC800 - CCFFFh
CE000 - CFFFFh
On
Off
On
On
Off
CD000 - CD7FFh
CE000 - CFFFFh
On
Off
On
Off
On
CD800 - CDFFFh
CE000 - CFFFFh
On
Off
On
Off
Off
D0000 - D07FFh
D2000 - D3FFFh
On
Off
Off
On
On
D0800 - D0FFFh
D2000 - D3FFFh
On
Off
Off
On
Off
D1000 - D17FFh
D2000 - D3FFFh
On
Off
Off
Off
On
D1800 - D1FFFh
D2000 - D3FFFh
On
Off
Off
Off
Off
D4000 - D47FFh
D6000 - D7FFFh
Off
On
On
On
On
D4800 - D4FFFh
D6000 - D7FFFh
Off
On
On
On
Off
D5000 - D57FFh
D6000 - D7FFFh
Off
On
On
Off
On
D5800 - D5FFFh
D6000 - D7FFFh
Off
On
On
Off
Off
D8000 - D87FFh
DA000 - DBFFFh
Off
On
Off
On
On
D8800 - D8FFFh
DA000 - DBFFFh
Off
On
Off
On
Off
D9000 - D97FFh
DA000 - DBFFFh
Off
On
Off
Off
On
D9800 - D9FFFh
DA000 - DBFFFh
Off
On
Off
Off
Off
DC000 - DC7FFh
DE000 - DFFFFh
Off
Off
On
On
On
DC800 - DCFFFh
DE000 - DFFFFh
Off
Off
On
On
Off
DD000 - DD7FFh
DE000 - DFFFFh
Off
Off
On
Off
On
DD800 - DDFFFh
DE000 - DFFFFh
Off
Off
On
Off
Off
E0000 - E07FFh
E2000 - E3FFFh
Off
Off
Off
On
On
E0800 - E0FFFh
E2000 - E3FFFh
Off
Off
Off
On
Off
E1000 - E17FFh
E2000 - E3FFFh
Off
Off
Off
Off
On
E1800 - E1FFFh
E2000 - E3FFFh
Off
Off
Off
Off
Off

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Yellow
Flashing
Data is being transmitted
LED1
Yellow
Off
Data is not being transmitted
LED2
Red
Slower Flashing
Network activity detected
LED2
Red
Rapid Blinking
Network connection is broken
LED2
Red
On
Network connection is good
