ML2PC Network Card Settings and Configuration

UNIDENTIFIED

ML2PC

NIC Type:
Ethernet
Transfer Rate:
10Mbps
Data Bus:
8-bit ISA
Topology:
Linear Bus
Wiring Type
AUI transceiver via DB-15 port
Boot ROM
Not available

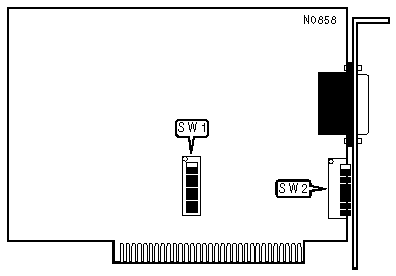

FACTORY CONFIGURED SETTINGS
Switch
Setting
SW1/1
On
SW1/2-SW1/8
Off
SW2/8
N/A

I/O ADDRESS
Address
SW2
1
SW2/1 on
31
SW2/1-SW2/5 all on
Note:The address range is in decimal form from 0-to 31. The switches are a binary representation of the addresses. When a switch is on, the corresponding bit is set to 1 and has the following decimal value: SW2/1=16, SW2/2=8, SW2/3=4, SW2/4=2, SW2/5=1.

LINE SPEED
Speed
SW2/6
SW2/7
38.4Kbits/s
Off
Off
76.8Kbits/s
Off
On
153.6Kbits/s
On
Off
307.2Kbits/s
On
On
