TE16PNPT Network Card Settings and Configuration
TRENDWARE INTERNATIONAL, INC.

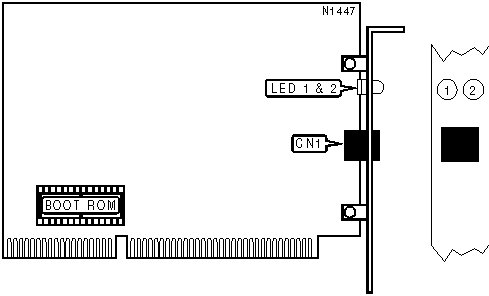

TE16PNPT
NIC Type | Ethernet |
Network Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Boot ROM | Available |
CONNECTIONS | |
Function | Label |
RJ-45/10BASE-T | CN1 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED 1 | Green | On | Power on |
LED 1 | Green | Off | Power off |
LED 1 | Green | Blinking | Data is being transmitted |
LED 2 | Green | On | Link integrity exists |
LED 2 | Green | Off | Link integrity broken |
LED 2 | Green | Blinking | Data is being received |
MISCELLANEOUS TECHNICAL NOTES |
This is a Plug-N-Play card, and it will detect which slot (8 or 16-bit) the card uses. |
