ETHERNET SC-T Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	SCSI
Topology	Linear Bus/Star
Wiring Type	Unshielded Twisted Pair AUI Transceiver via DB-15 port
Boot ROM	Not available

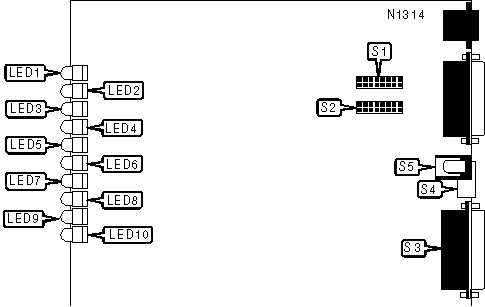

CONNECTIONS
Purpose	Location
SCSI connector	S3
SCSI select switch	S4
DC power connector	S5

CABLE TYPE SELECTION
Cable Type	S1	S2
Unshielded Twisted Pair	Installed	Not installed
AUI Transceiver via DB-15 port	Not installed	Installed

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	10Base-T polarity is reversed
LED1	Off	10Base-T polarity is normal
LED2	On	Data is being received
LED2	Off	Data is not being received
LED3	On	Data is being received
LED3	Off	Data is not being received
LED4	On	Data is being received
LED4	Off	Data is not being received
LED5	On	Data is being received
LED5	Off	Data is not being received
LED6	On	Data is being transmitted
LED6	Off	Data is not being transmitted
LED7	On	Data is being transmitted
LED7	Off	Data is not being transmitted
LED8	On	Data is being transmitted
LED8	Off	Data is not being transmitted
LED9	On	Data is being transmitted
LED9	Off	Data is not being transmitted
LED10	On	10Base-T network connection is good
LED10	Off	10Base-T network connection is broken
