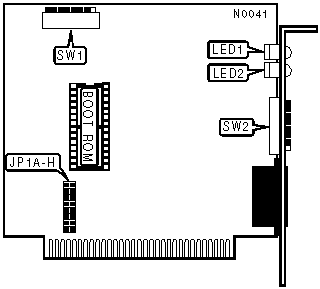

ARCnet PC270E Network Card Settings and Configuration

STANDARD MICROSYSTEMS CORPORATION

ARCnet PC270E

NIC Type
ARCnet
Transfer Rate
2.5Mbps
Data Bus
8-bit ISA
Topology
Star
Linear Bus
Wiring Type
Unshielded twisted pair
Boot ROM
Available

NODE ADDRESS
Node
SW2/1
SW2/2
SW2/3
SW2/4
SW2/5
SW2/6
SW2/7
SW2/8
0
-
-
-
-
-
-
-
-
1
Off
On
On
On
On
On
On
On
2
On
Off
On
On
On
On
On
On
3
Off
Off
On
On
On
On
On
On
4
On
On
Off
On
On
On
On
On
251
Off
Off
On
Off
Off
Off
Off
Off
252
On
On
Off
Off
Off
Off
Off
Off
253
Off
On
Off
Off
Off
Off
Off
Off
254
On
Off
Off
Off
Off
Off
Off
Off
255
Off
Off
Off
Off
Off
Off
Off
Off
Note:Note address 0 is used for messaging between nodes and must not be used.
A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 1 is the Least Significant Bit and switch 8 is the Most Significant Bit. The switches have the following decimal values: switch 1=1, 2=2, 3=4, 4=8, 5=16, 6=32, 7=64, 8=128. Turn off the switches and add the values of the off switches to obtain the correct node address. (On=0, Off=1)

INTERRUPT REQUEST
IRQ
JP1D
JP1E
JP1F
JP1G
JP1H
2
Open
Open
Open
Open
Closed
3
Open
Open
Open
Closed
Open
4
Open
Open
Closed
Open
Open
5
Open
Closed
Open
Open
Open
7
Closed
Open
Open
Open
Open

BASE MEMORY ADDRESS & BOOT ROM ADDRESS
Base Address
Boot ROM Address
SW2/1
SW2/2
SW2/3
SW2/4
SW2/5
»
D0000 - D07FFh
D2000 - D3FFFh
On
Off
Off
On
On

C0000 - C07FFh
C2000 - C3FFFh
On
On
On
On
On

C0800 - C0FFFh
C2000 - C3FFFh
On
On
On
On
Off

C1000 - C17FFh
C2000 - C3FFFh
On
On
On
Off
On

C1800 - C1FFFh
C2000 - C3FFFh
On
On
On
Off
Off

C4000 - C47FFh
C6000 - C7FFFh
On
On
Off
On
On

C4800 - C4FFFh
C6000 - C7FFFh
On
On
Off
On
Off

C5000 - C57FFh
C6000 - C7FFFh
On
On
Off
Off
On

C5800 - C5FFFh
C6000 - C7FFFh
On
On
Off
Off
Off

CC000 - CC7FFh
CE000 - CFFFFh
On
Off
On
On
On

CC800 - CCFFFh
CE000 - CFFFFh
On
Off
On
On
Off

CD000 - CD7FFh
CE000 - CFFFFh
On
Off
On
Off
On

CD800 - CDFFFh
CE000 - CFFFFh
On
Off
On
Off
Off

D0800 - D0FFFh
D2000 - D3FFFh
On
Off
Off
On
Off

D1000 - D17FFh
D2000 - D3FFFh
On
Off
Off
Off
On

D1800 - D1FFFh
D2000 - D3FFFh
On
Off
Off
Off
Off

D4000 - D47FFh
D6000 - D7FFFh
Off
On
On
On
On

D4800 - D4FFFh
D6000 - D7FFFh
Off
On
On
On
Off

D5000 - D57FFh
D6000 - D7FFFh
Off
On
On
Off
On

D5800 - D5FFFh
D6000 - D7FFFh
Off
On
On
Off
Off

D8000 - D87FFh
DA000 - DBFFFh
Off
On
Off
On
On

D8800 - D8FFFh
DA000 - DBFFFh
Off
On
Off
On
Off

D9000 - D97FFh
DA000 - DBFFFh
Off
On
Off
Off
On

D9800 - D9FFFh
DA000 - DBFFFh
Off
On
Off
Off
Off

DC000 - DC7FFh
DE000 - DFFFFh
Off
Off
On
On
On

DC800 - DCFFFh
DE000 - DFFFFh
Off
Off
On
On
Off

DD000 - DD7FFh
DE000 - DFFFFh
Off
Off
On
Off
On

DD800 - DDFFFh
DE000 - DFFFFh
Off
Off
On
Off
Off

E0000 - E07FFh
E2000 - E2FFFh
Off
Off
Off
On
On

E0800 - E0FFFh
E2000 - E2FFFh
Off
Off
Off
On
Off

E1000 - E17FFh
E2000 - E2FFFh
Off
Off
Off
Off
On

E1800 - E1FFFh
E2000 - E2FFFh
Off
Off
Off
Off
Off

RESPONSE AND RECONFIGURATION TIMEOUTS
Response Time
Idle Time
Reconfig. Time
JP1A
JP1B
»
78 m
86 m
840 m
Closed
Closed

285 m
316 m
1680 m
Open
Closed

563 m
624 m
1680 m
Closed
Open

1190 m
1237 m
1680 m
Open
Open

BOOT ROM
Setting
JP1C
»
Disabled
Open

Enabled
Closed

I/O BASE ADDRESS
Address
SW1/1
SW1/2
SW1/3
260h
On
On
On
290h
On
On
Off
2E0h
On
Off
On
2F0h
On
Off
Off
300h
Off
On
On
350h
Off
On
Off
380h
Off
Off
On
3E0h
Off
Off
Off

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Red
On/Blinking
Data is being transmitted or receiving
LED1
Red
Off
Data is not being transmitted or receiving
LED2
Green
On
Card is configured correctly
LED2
Green
Blinking
Card is reconfiguring
LED2
Green
Off
Card is defective or not configured correctly
