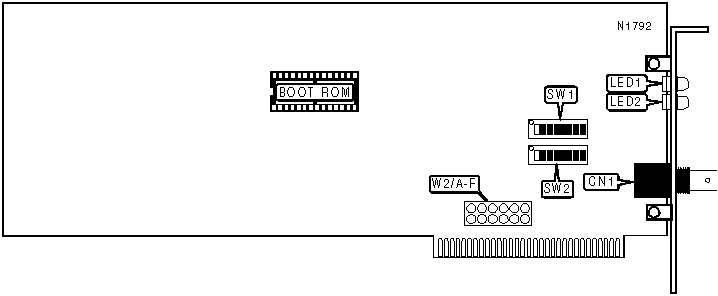

PLAN 2000 NIC Network Card Settings and Configuration

NESTAR SYSTEMS, INC.

PLAN 2000 NIC

NIC Type
Plan 2000 (proprietary)
Network Transfer Rate
Unidentified
Data Bus
8-bit ISA
Topology
Star
Wire Type
RG-62A/U 93ohm coaxial
Boot ROM
Available

CONNECTIONS
Function
Label
RG-62A/U 93ohm coaxial connector
CN1

USER CONFIGURABLE SETTINGS
Setting
Label
Position
»
Factory configured - do not alter
SW2/8
Unidentified

NODE ADDRESS
Setting
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
SW1/7
SW1/8
1
Off
On
On
On
On
On
On
On
2
On
Off
On
On
On
On
On
On
3
Off
Off
On
On
On
On
On
On
4
On
On
Off
On
On
On
On
On
5
Off
On
Off
On
On
On
On
On
251
Off
Off
On
Off
Off
Off
Off
Off
252
On
On
Off
Off
Off
Off
Off
Off
253
Off
On
Off
Off
Off
Off
Off
Off
254
On
Off
Off
Off
Off
Off
Off
Off
255
Off
Off
Off
Off
Off
Off
Off
Off
Note: A total of 254 node address settings are available. The switches are a binary representation of the decimal node addresses. SW1/8 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following decimal values: SW1/8=128, SW1/7=64, SW1/6=32, SW1/5=16, SW1/4=8, SW1/3=4, SW1/2=2, SW1/1=1. Turn off the switches and add the values of the switches that are off to obtain the correct node ID. (Off=1, On=0)
Node addresses 0 and 255 are reserved and should not be used.
On some versions of this card, SW1 may be a one-use shunt instead of a switch.

SHARED RAM ADDRESS
Setting
SW2/1
SW2/2
SW2/3
SW2/4
SW2/5
SW2/6
SW2/7
0000h
On
On
On
On
On
On
On
0400h
On
On
On
On
On
On
Off
0800h
On
On
On
On
On
Off
On
0C00h
On
On
On
On
On
Off
Off
1000h
On
On
On
On
Off
On
On
D200h
Off
Off
On
Off
On
On
Off
EC00h
Off
Off
Off
Off
On
Off
Off
F000h
Off
Off
Off
Off
Off
On
On
F400h
Off
Off
Off
Off
Off
On
Off
F800h
Off
Off
Off
Off
Off
Off
On
FC00h
Off
Off
Off
Off
Off
Off
Off
Note: A total of 128 memory address settings are available. The switches are a binary representation of the decimal memory addresses. SW2/1 is the Most Significant Bit and switch SW2/7 is the Least Significant Bit. The switches have the following decimal values: SW2/1=65,536, SW2/2=85=32,768, SW2/3=16,384, SW2/4=8,192, SW2/5=4,096, SW2/6=2,048, SW2/7=1,024. Turn off the switches and add the values of the switches that are off to obtain the correct address. (Off=1, On=0)
On some versions of this card, SW2 may be a one-use shunt instead of a switch.

INTERRUPT
Setting
W2/A
W2/B
W2/C
W2/D
W2/E
W2/F
IRQ2
Closed
Open
Open
Open
Open
Open
IRQ3
Open
Closed
Open
Open
Open
Open
IRQ4
Open
Open
Closed
Open
Open
Open
IRQ5
Open
Open
Open
Closed
Open
Open
IRQ6
Open
Open
Open
Open
Closed
Open
IRQ7
Open
Open
Open
Open
Open
Closed
Note:W2 is a set of solder contacts. To change the interrupt, you must cut the trace on W2/A andhard-wire a jumper with a soldering gun.

DIAGNOSTIC LED(S)
The functions and colors of the LEDs are unidentified.
