ND6000-E Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus/Star
Wiring Type	Unshielded twisted pair AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial
Boot ROM	Available

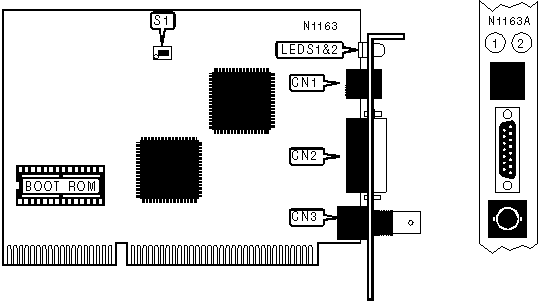

CONNECTIONS
Function	Location	Function	Location
Unshielded twisted pair	CN1	RG-58A/U 50ohm coaxial	CN3
AUI transceiver via DB-15	CN2

SI CONFIGURATION
Select	S1
Reset	Position 1
Normal	Position 2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Network connection is good
LED1	Green	Blinking	Data is being received
LED1	Green	Off	Network connection is broken
LED2	Red	On	Polarity is reversed
LED2	Red	Blinking	Data is being transmitted
LED2	Red	Off	Polarity is normal
