ND5120 Network Card Settings and Configuration

NDC COMMUNICATIONS, INC.

ND5120

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
PCMCIA
Topology
Star
Wiring Type
Unshielded twisted pair
Boot ROM
Not available

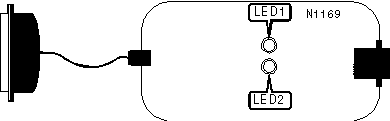

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Red
Blinking
Data is being transmitted/received
LED1
Red
Off
Data is not being transmitted/received
LED2
Green
On
10Base-T connection is good
LED2
Green
Off
10Base-T connection is broken
