LNA390A (32-BIT AT32) Network Card Settings and Configuration

MYLEX CORPORATION

LNA390A (32-BIT AT32)

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
32-bit AT32 (Proprietary)
Topology
Linear Bus
Wiring Type
RG58A/U 50ohm coaxial
AUI transceiver via DB-15 port
Boot ROM
Not Available

CABLE TYPE
Type
JP4A - JP4H
RG58A/U 50ohm coaxial
Pins 1 & 2 closed
AUI transceiver via DB-15 port
Pins 2 & 3 closed

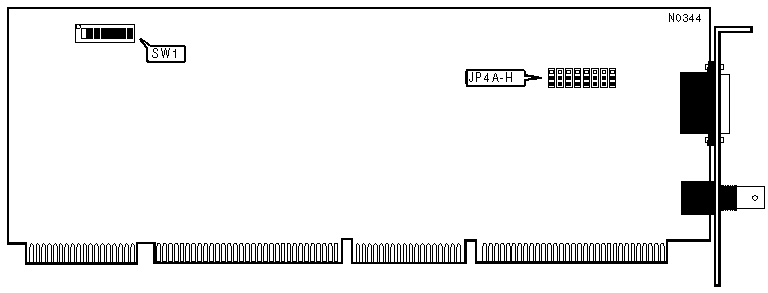

CARD CONFIGURATION (I/O ADDRESS AND BASE MEMORY ADDRESS)
I/O
IRQ
Base
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
SW1/7
SW1/8
»
300h
3
FF000h
Off
Off
On
On
On
On
On
On

320h
2
FE000h
Off
On
On
On
Off
Off
Off
On

340h
4
FD000h
On
Off
On
Off
On
Off
On
On

360h
5
FC000h
On
On
Off
On
On
On
Off
On
