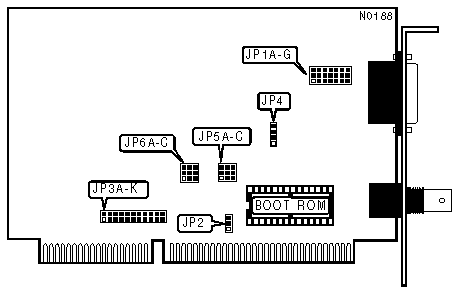

DE-200 for PC AT Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	RG--58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

BOOT ROM
Setting		JP2
»	Disabled	Pins 1 & 2 Closed
	Enabled	Pins 2 & 3 Closed

INTERRUPT REQUEST
IRQ	JP3a	JP3B	JP3C	JP3D	JP3E	JP3F	JP3G	JP3H	JP3I	JP3J	JP3K
3	Closed	Open	Open	Open	Open	Open	Open	Open	Open	Open	Open
4	Open	Closed	Open	Open	Open	Open	Open	Open	Open	Open	Open
5	Open	Open	Closed	Open	Open	Open	Open	Open	Open	Open	Open
6	Open	Open	Open	Closed	Open	Open	Open	Open	Open	Open	Open
7	Open	Open	Open	Open	Closed	Open	Open	Open	Open	Open	Open
9	Open	Open	Open	Open	Open	Closed	Open	Open	Open	Open	Open
10	Open	Open	Open	Open	Open	Open	Closed	Open	Open	Open	Open
11	Open	Open	Open	Open	Open	Open	Open	Closed	Open	Open	Open
12	Open	Open	Open	Open	Open	Open	Open	Open	Closed	Open	Open
14	Open	Open	Open	Open	Open	Open	Open	Open	Open	Closed	Open
15	Open	Open	Open	Open	Open	Open	Open	Open	Open	Open	Closed

I/O BASE ADDRESS
Address		JP6A	JP6B	JP6C
	200h	Pins 1 & 2 Closed	Pins 1 & 2 Closed	Pins 1 & 2 Closed
	220h	Pins 2 & 3 Closed	Pins 1 & 2 Closed	Pins 1 & 2 Closed
	240h	Pins 1 & 2 Closed	Pins 1 & 2 Closed	Pins 2 & 3 Closed
	260h	Pins 2 & 3 Closed	Pins 1 & 2 Closed	Pins 2 & 3 Closed
»	300h	Pins 1 & 2 Closed	Pins 2 & 3 Closed	Pins 1 & 2 Closed
	320h	Pins 2 & 3 Closed	Pins 2 & 3 Closed	Pins 1 & 2 Closed
	340h	Pins 1 & 2 Closed	Pins 2 & 3 Closed	Pins 2 & 3 Closed
	360h	Pins 2 & 3 Closed	Pins 2 & 3 Closed	Pins 2 & 3 Closed

CHIP SET
Type		JP4
»	Standard	Pins 1 & 2 Closed
	Non-standard 1	Pins 2 & 3 Closed
	Non-standard 2	Pins 3 & 4 closed
Note:Non-standard PC AT systems and early versions of Chips & Technologies chipsets do not use timing compatible with the IBM AT bus for the I/O CHRDY signal. If the NIC does not work with the standard setting, try one of the two non-standard settings.

CABLE TYPE
Type		JP1A-G
»	RG-58A/U 50ohm coaxial	Pins 2 & 3 Closed
	AUI transceiver via DB-15 port	Pins 1 & 2 Closed

BOOT ROM ADDRESS
Address		JP5A	JP5B	JP5C
	C8000h	Pins 1 & 2 Closed	Pins 2 & 3 Closed	Pins 1 & 2 Closed
	CC000h	Pins 2 & 3 Closed	Pins 2 & 3 Closed	Pins 1 & 2 Closed
»	D0000h	Pins 1 & 2 Closed	Pins 1 & 2 Closed	Pins 2 & 3 Closed
	D4000h	Pins 2 & 3 Closed	Pins 1 & 2 Closed	Pins 2 & 3 Closed
	D8000h	Pins 1 & 2 Closed	Pins 2 & 3 Closed	Pins 2 & 3 Closed
	DC000h	Pins 2 & 3 Closed	Pins 2 & 3 Closed	Pins 2 & 3 Closed
