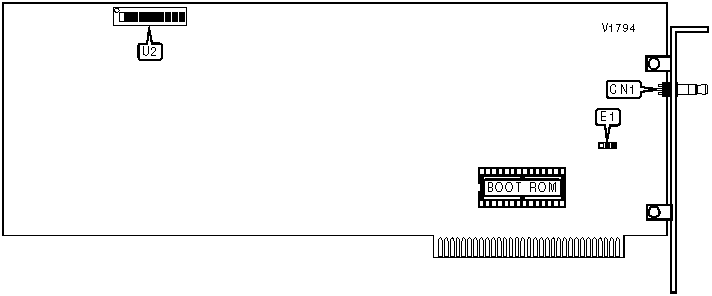

TRANSPORTER MODEL 8010-08048 Network Card Settings and Configuration

NIC Type	OmniNet (proprietary)
Network Transfer Rate	Unidentified
Data Bus	8-bit ISA
Topology	Linear Bus
Wire Type	Shielded/Unshielded twisted pair
Boot ROM	Available

CONNECTIONS
Function	Label
Unshielded or shielded twisted pair via 1/8" plug	CN1

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	E1	Pins 1 & 2 closed

NODE ADDRESS
Setting	U2/1	U2/2	U2/3	U2/4	U2/5	U2/6
0	On	On	On	On	On	On
1	Off	On	On	On	On	On
2	On	Off	On	On	On	On
3	Off	Off	On	On	On	On
4	On	On	Off	On	On	On
59	Off	Off	On	Off	Off	Off
60	On	On	Off	Off	Off	Off
61	Off	On	Off	Off	Off	Off
62	On	Off	Off	Off	Off	Off
63	Off	Off	Off	Off	Off	Off
Note: A total of 64 node address settings are available. The switches are a binary representation of the decimal node addresses. U2/6 is the Most Significant Bit and switch U2/1 is the Least Significant Bit. The switches have the following decimal values: U2/6=32, U2/5=16, U2/4=8, U2/3=4, U2/2=2, U2/1=1. Turn off the switches and add the values of the switches that are off to obtain the correct node ID. (Off=1, On=0)

BIAS SELECTION
Setting	U2/7	U2/8
Normal	Off	Off
Biased	On	On
Note:Only one machine per network should be set to biased.
