CS-FDDI ISA-LCF-DAS Network Card Settings and Configuration
COMPU-SHACK PRODUCTION, GMBH
CS-FDDI ISA-LCF-DAS
Card Type | Network Interface Card |
NIC Type | FDDI |
Maximum Onboard Memory | Unidentified |
Boot ROM | Available (location unidentified) |
Network Transfer Rate | 100Mbps |
Topology | Ring |
Wiring Type | Fiber optic cable |
Data Bus | 16-bit ISA |

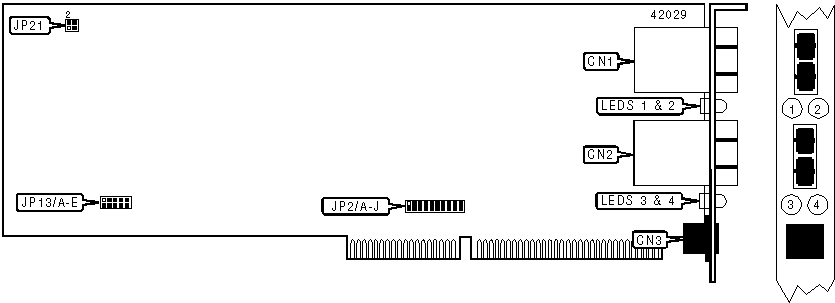

CONNECTIONS | |||
Function | Label | Function | Label |
LCF transceiver 2 | CN1 | UTP connector | CN3 |
LCF transceiver 1 | CN2 |
|
|
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | Boot ROM disabled | JP13/A | Open |
| Boot ROM enabled | JP13/A | Closed |
» | Factory configured - do not alter | JP13/E | Unidentified |
» | Factory configured - do not alter | JP21/pins 1 & 2 | Unidentified |
| Hard configuration mode selected | JP21/pins 3 & 4 | Open |
| Soft configuration mode selected | JP21/pins 3 & 4 | Closed |
BASE I/O ADDRESS SELECTION | ||||
Address | JP13/B | JP13/C | JP13/D | |
| 200h-21Fh | Closed | Closed | Closed |
| 220h-23Fh | Closed | Closed | Open |
| 240h-25Fh | Closed | Open | Closed |
| 280h-29Fh | Closed | Open | Open |
» | 300h-31Fh | Open | Closed | Closed |
| 320h-33Fh | Open | Closed | Open |
| 340h-35Fh | Open | Open | Closed |
INTERRUPT SELECTION | |||||||||||
IRQ | JP2/A | JP2/B | JP2/C | JP2/D | JP2/E | JP2/F | JP2/G | JP2/H | JP2/I | JP2/J | |
| 3 | Open | Open | Open | Open | Open | Open | Open | Open | Open | Closed |
| 4 | Open | Open | Open | Open | Open | Open | Open | Open | Closed | Open |
» | 5 | Open | Open | Open | Open | Open | Open | Open | Closed | Open | Open |
| 7 | Open | Open | Open | Open | Open | Open | Closed | Open | Open | Open |
| 9 | Open | Open | Open | Open | Open | Closed | Open | Open | Open | Open |
| 10 | Open | Open | Open | Open | Closed | Open | Open | Open | Open | Open |
| 11 | Open | Open | Open | Closed | Open | Open | Open | Open | Open | Open |
| 12 | Open | Open | Closed | Open | Open | Open | Open | Open | Open | Open |
| 14 | Open | Closed | Open | Open | Open | Open | Open | Open | Open | Open |
| 15 | Closed | Open | Open | Open | Open | Open | Open | Open | Open | Open |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Unidentified | On | LCF 1 status (see conditions in note below) |
LED2 | Unidentified | Off | LCF 2 status (see conditions in note below) |
LED3 | Green | On | Ring connection is good |
LED3 | Green | Off | Ring connection is broken |
LED4 | Yellow | On | Data is being transmitted/received |
LED4 | Yellow | Off | Data is not being transmitted/received |
Note: LED1 and LED2 vary depending on model. Red (On: Illegal connection, Off: Valid connection); or Orange (On: Line error alarm activated, Off: Line error alarm not activated). | |||
TECHNICAL NOTE |
Note: When the board is operated in soft configuration mode, jumpers JP13 and JP2 must be open. JP21/pins 1 & 2 function to toggle I/O address selection. If an I/O address collision is detected during installation, the shunt on JP21/pins 1 & 2 can be changed (while the PC is running) to force the software to try the next larger I/O address. For example, if a collision is detected using I/O address 300h, removing shunt on JP21/pins 1 & 2 will force the software to try I/O address 320h. |
