CN800E/880E Network Card Settings and Configuration

CNET TECHNOLOGY, INC.

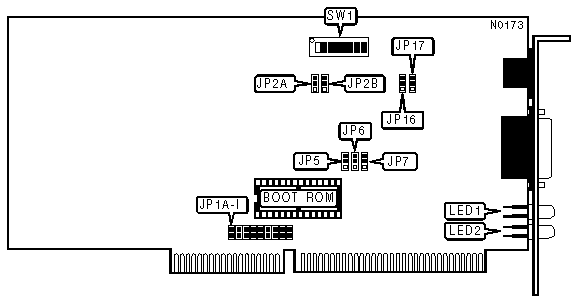

CN800E/880E

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
16-bit ISA
Topology
Star
Wiring Type
Unshielded twisted pair
AUI transceiver via DB-15 port
Boot ROM
Available

INTERRUPT REQUEST
IRQ
JP1A
JP1B
JP1C
JP1D
JP1E
JP1F
JP1G
JP1H
JP1I

2/9
Closed
Open
Open
Open
Open
Open
Open
Open
Open
»
3
Open
Closed
Open
Open
Open
Open
Open
Open
Open

4
Open
Open
Closed
Open
Open
Open
Open
Open
Open

5
Open
Open
Open
Closed
Open
Open
Open
Open
Open

7
Open
Open
Open
Open
Closed
Open
Open
Open
Open

10
Open
Open
Open
Open
Open
Closed
Open
Open
Open

11
Open
Open
Open
Open
Open
Open
Closed
Open
Open

12
Open
Open
Open
Open
Open
Open
Open
Closed
Open

15
Open
Open
Open
Open
Open
Open
Open
Open
Closed

WAIT STATE
Setting
JP2A
JP2B
»
0 Wait states
Pins 1 & 2 closed
Pins 1 & 2 closed

1 Wait state
Pins 2 & 3 closed
Pins 1 & 2 closed

2 Wait states
Pins 2 & 3 closed
Pins 2 & 3 closed

BOOT ROM
Setting
JP5
»
Disabled
Pins 1 & 2 closed

Enabled
Pins 2 & 3 closed

BOOT ROM SIZE
Size
JP6
JP7
»
16KB
Pins 1 & 2 closed
Pins 1 & 2 closed

32KB
Pins 2 & 3 closed
Pins 1 & 2 closed

64KB
Pins 2 & 3 closed
Pins 2 & 3 closed

CABLE TYPE
Type
JP16
»
Unshielded twisted pair
Pins 2 & 3 Closed

AUI transceiver via DB-15 port
Pins 1 & 2 Closed

LINK INTEGRITY TEST
Setting
JP31
»
Enabled
Pins 1 & 2 Closed

Disabled
Pins 2 & 3 Closed
Note:Link Integrity is only used with 10Base-T wiring. When using an AUI transciever, the test should be disabled.

BOOT ROM ADDRESS
Address
ROM Size
SW1/1
SW1/2
SW1/3
SW1/4

C0000h
16KB
On
On
On
On

C0000h
32KB
On
On
On
Off

C0000h
64KB
On
On
Off
Off

C4000h
16KB
On
On
On
Off

C8000h
16KB
On
On
Off
On

C8000h
32KB
On
On
Off
Off

CC000h
16KB
On
On
Off
Off

D0000h
16KB
On
Off
On
On

D0000h
32KB
On
Off
On
Off

D0000h
64KB
On
Off
Off
Off

D4000h
16KB
On
Off
On
Off
»
D8000h
16KB
On
Off
Off
On

D8000h
32KB
On
Off
Off
Off

DC000h
16KB
On
Off
Off
Off

I/O BASE ADDRESS
Address
SW1/5
SW1/6
SW1/7
SW1/8

200-2IFh
On
On
On
On

220-23Fh
On
On
On
Off

240-25Fh
On
On
Off
On
»
280-29Fh
On
Off
On
On

2A0-2BFh
On
Off
On
Off

2C0-2DFh
On
Off
Off
On

300-31Fh
Off
On
On
On

320-33Fh
Off
On
On
Off

340-35Fh
Off
On
Off
On

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Red
On/Blinking
Data is being received
LED1
Red
Off
Data is not being received
LED2
Green
On
Twisted pair network connection is good
LED2
Green
Off
Twisted pair network connection is broken
